In steelmaking and thermal power generation, slag and steel slag are major solid wastes. They are hard, highly abrasive, and dense. Without proper treatment, they occupy vast land and pose environmental risks. However, with natural sand resources depleting and environmental regulations tightening, slag resource utilization is no longer optional – it has become a necessity.
The critical step in slag resource utilization is efficient and controllable crushing. Huashengming roll crusher is designed precisely for this purpose.
I. Why Do Traditional Crushers Fail with Slag?
Slag is not ordinary rock. It is hard, highly abrasive, and often contains metallic iron particles, glassy phases, and crystalline minerals. Conventional crushers (like jaw crushers and hammer crushers) face three major pain points when processing slag:
Rapid wear of wear parts, high maintenance costs. The strong abrasiveness of slag quickly wears out hammers and liners, causing frequent replacements that disrupt production.
Severe over-crushing. Impact-type crushing generates excessive fines, reducing efficiency in downstream separation and building material applications.
Poor particle size control. It struggles to meet the strict particle size requirements for applications like construction aggregates and road base materials.
In short: conventional crushers for slag – rapid wear, excessive fines, poor control.
Slag Roll Crusher
II. Huashengming Roll Crusher: The Key Step in Slag Resource Utilization
Huashengming roll crusher uses two motors to drive two roller shafts for compression and grinding of materials. It does not rely on high-speed impact – it uses static-pressure compression. Two counter-rotating rollers apply continuous, uniform compressive force to the material, causing it to fracture along natural fissures.
This crushing method solves the three major problems of slag crushing:
Uniform particle size, low over-crushing. The discharge size is precisely controlled by the roll gap, producing cubic-shaped particles with good shape, ideal for downstream screening, magnetic separation, and building material applications. Huashengming roll crusher is suitable for fine crushing of materials with feed size below 80mm and final product sizes ranging from 0- 5mm.
Strong wear resistance, long service life. The roller shells are made of high-chromium manganese steel wear-resistant material (containing rare metals, patent pending), effectively resisting the strong abrasiveness of slag. The roller shell service life averages over 2 years, significantly reducing maintenance costs.
Low energy consumption, smooth operation. Without high-speed impact components, the machine operates with low vibration and noise, and its energy consumption per ton is far lower than hammer crushers. The simple structure and good sealing minimize dust, improving the working environment.

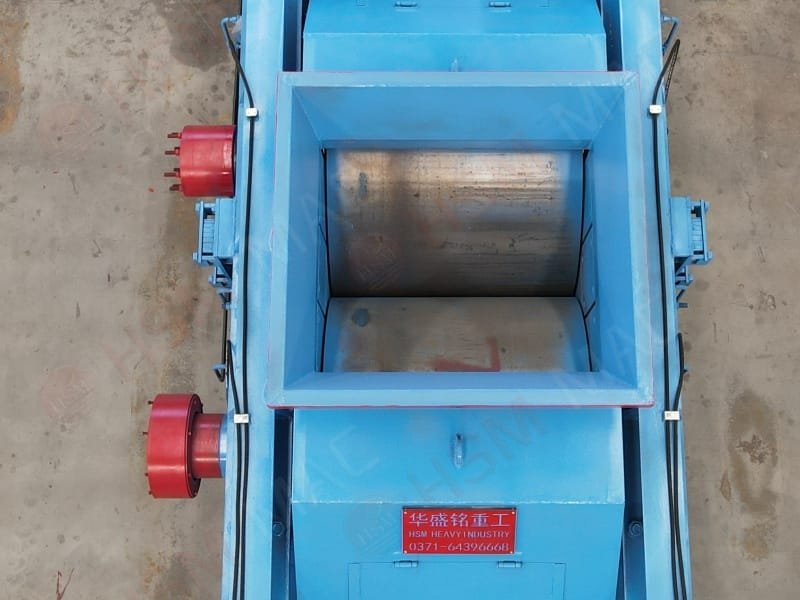

High-Chromium Manganese Steel Roller Shell
III. Practical Application: Improving Efficiency in Slag Processing Projects
Huashengming 2PGT 610×400 spring roll crusher has been used in a customer’s slag processing project. The equipment is powered by two gear reducers and motors, providing strong and stable operation. The spring pressure system can be flexibly adjusted to ensure all output is below 5mm with uniform particle shape. The compact structure and wear-resistant roller shells effectively reduce operating costs.
In addition, Huashengming roll crusher is widely used for crushing coal gangue, shale, coal slag, furnace slag, dolomite, river pebbles, construction waste, and more in brick and tile plants. Double-stage slag crushers have also been applied in multiple solid waste processing projects and have received positive customer feedback.
IV. Wide Model Range, Customized Configuration
Huashengming roll crushers are available in small, medium, and large models:
Small spring roll crushers (2PGT400×250, 2PGT400×400, 2PGT610×400): Capacity 2-20 t/h, suitable for small and medium slag processing projects.
spring roller crusher
Medium spring/hydraulic roll crushers (2PGT750×500, 2PGT800×600, 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800): Capacity 20-80 t/h, with hydraulic models offering smarter control, higher output, and greater cost efficiency.
Large flagship CNC hydraulic roll crushers (2PGY1000×1000, 2PGY1200×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000): Capacity 80-400 t/h, suitable for large slag processing projects with one-touch start/stop for convenient operation.
Equipment is available in three configuration levels – high-end, standard, and basic – allowing customers to choose based on budget and operating conditions.
Final Words
Slag is not waste – it is a resource placed in the wrong place. Turning slag into usable construction aggregates, cement admixtures, or even recovering metallic iron begins with crushing – the first and most critical step.
With 30 years of experience in Gongyi, Huashengming specializes in roll crushing technology, offering full-process services from equipment selection and solution design to installation and commissioning. Though the roll crusher may seem simple in structure, it plays a vital “bridging” role in the slag resource utilization chain – not only as a physical crushing tool but also as a technological enabler for the circular economy and the vision of a “zero-waste factory.”
We welcome you to bring your material for a trial run – see the results on-site before you decide. Choosing the right equipment means choosing the right long-term partner.
