Reclaimed asphalt pavement (RAP) generated from road maintenance can be recycled and reused, representing an important direction for the circular economy. However, RAP is highly viscous and prone to agglomeration. Traditional hammer crushers and impact crushers using high-speed impact crushing often cause over-crushing of aggregates, asphalt sticking and clogging, and substandard product quality.
The Huashengming RAP-specific double-tooth roll crusher employs a low-speed, flexible shearing crushing process specifically designed to match the characteristics of milling material. It effectively breaks up agglomerates while preserving aggregate integrity, making it an ideal choice for RAP pre-processing in recycling applications.
Reclaimed Asphalt Pavement
I. Core Pain Points of Traditional Milling Material Processing
When traditional impact-type crushers process asphalt milling material, they present several production shortcomings that directly constrain recycled material quality and production efficiency:
1. Severe Over-Crushing Leads to Aggregate Gradation Imbalance
High-speed impact easily fractures virgin aggregates, resulting in excessive fines and flat/elongated particles. Aggregate gradation becomes compromised, significantly reducing the substitution rate of recycled material and failing to meet high-standard pavement construction requirements.
2. Frictional Heat Causes Asphalt Adhesion and Clogging
High-speed crushing generates substantial frictional heat, causing asphalt to soften and adhere to equipment surfaces. Frequent roll sticking and clogging under high-temperature conditions require repeated shutdowns for cleaning, severely interrupting continuous production line operation.
3. High Wear Parts Consumption Drives Up Maintenance Costs
Impact-type crushing causes severe wear, requiring frequent replacement of wear parts. Increased downtime for maintenance adds costs for parts, labor, and production losses, resulting in poor overall economic performance.
4. Damaged Asphalt Film Compromises Recycling Quality
High-impact force damages the original asphalt film on aggregate surfaces, accelerating asphalt aging and deterioration. This leads to poor fusion performance of recycled material, making it unsuitable for high-grade road recycling applications.

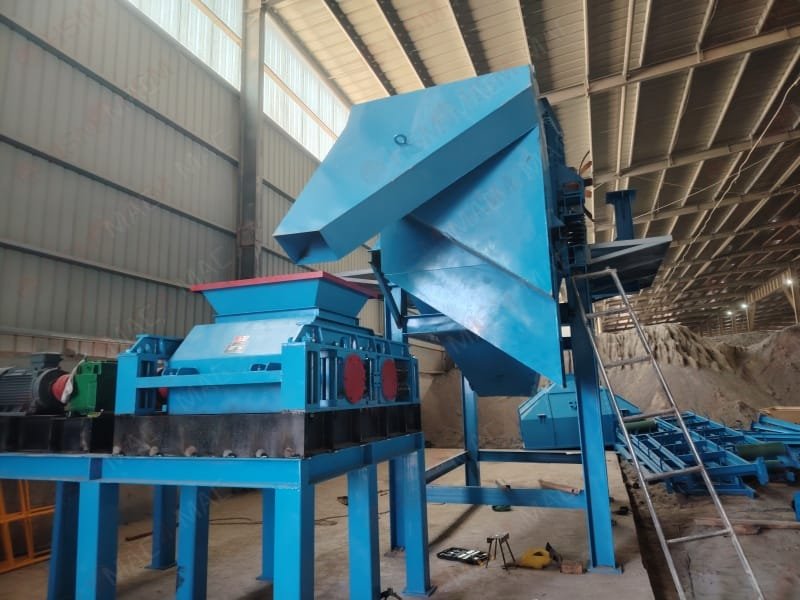

Milled Asphalt Crusher
II. Equipment Working Principle
The Huashengming RAP-specific double-tooth roll crusher employs a low-speed, counter-rotating shearing and compression flexible liberation process. Two wear-resistant toothed rolls rotate slowly in opposite directions. The intermeshing teeth firmly grip asphalt agglomerates and apply shearing force to break the asphalt bonding layer within the material. The process only loosens and separates agglomerated material without violently crushing virgin aggregates.
The hydraulic system precisely controls the roll gap to accurately regulate output particle size. Low-speed operation significantly reduces temperature rise during crushing, while the specially designed self-cleaning tooth structure automatically removes adhering asphalt. This fundamentally solves roll sticking and material clogging issues, ensuring 24/7 continuous and stable operation.
III. Core Advantages of the Solution
1. Eliminates Over-Crushing, Significantly Improves Recycled Material Quality
The flexible liberation process only breaks asphalt agglomerates without damaging virgin aggregate structures, effectively reducing fines and flat/elongated particles. Recycled aggregates feature regular particle shape and stable gradation, fully meeting construction standards for both hot and cold recycled pavements.
2. Solves Asphalt Adhesion and Clogging, Ensures Continuous Production
The low-temperature-rise crushing environment prevents asphalt melting and adhesion. The self-cleaning structure eliminates material buildup, eliminating the need for frequent shutdowns for cleaning and significantly improving continuous operation efficiency of the milling material production line.
3. Reduces Wear Parts Consumption, Lowers Processing Costs
The wear-resistant design effectively handles hard and agglomerated materials, substantially reducing parts replacement rates. Simplified maintenance procedures and reduced downtime for repairs significantly lower overall operating costs.

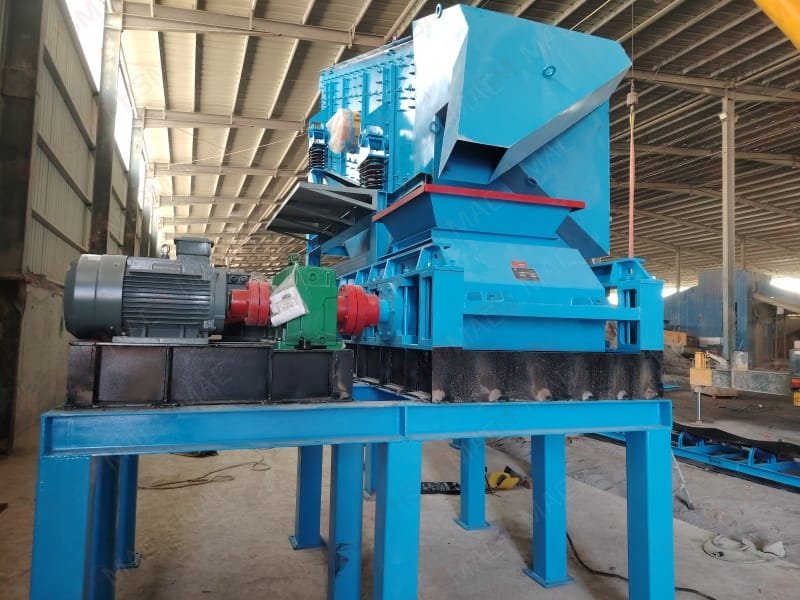

Milled Asphalt Crusher production site
4. Flexible Particle Size Control, Adapts to Multiple Recycling Scenarios
The output particle size of crushed milling material can be precisely controlled to produce compliant recycled aggregates on demand. It accommodates various construction standards including hot in-place recycling for surface layers and cement-stabilized base fill, adapting to diverse asphalt milling material recycling applications.
5. Low Energy, Low Noise, Dust-Free – Meets Environmental Requirements
The process consumes less energy with reduced vibration and noise. Combined with dust collection and sealed systems, it effectively controls dust pollution, ensuring compliance with environmental acceptance standards for solid waste recycling across different regions.
IV. Huashengming Technical Services
Huashengming specializes in toothed roll crusher R&D and manufacturing, with a strong focus on road solid waste recycling. Our RAP-specific double-tooth roll crushers, featuring low fines, anti-clogging, and low maintenance, have been widely used in asphalt recycling projects — a reliable solution for RAP resource recovery.
