This article addresses the common issue of coarser and uneven discharge sizing in long-service double roll crushers, explaining that it typically signals normal roller shell wear rather than machine failure. By systematically identifying the root cause and implementing a tiered maintenance strategy—adjusting roll gaps for minor wear, performing hardfacing weld overlays for moderate wear, and replacing roll shells for severe degradation—operators can restore product grading, minimize maintenance overhead, and extend equipment operating lifespan.
After running a double roll crusher for an extended period, many operators notice the discharged product becoming noticeably coarser and less uniform, often jumping to the conclusion that the equipment has broken down. In most cases, however, this is simply a sign of natural roll shell wear. Solving this issue is straightforward: first verify the cause, then apply a tiered maintenance approach based on the severity of the wear—adjusting the gap for minor wear, hardfacing for moderate wear, and replacing the shells for heavy wear. Huashengming (HSM) provides professional roll shell repair and replacement services to help clients minimize maintenance expenses.

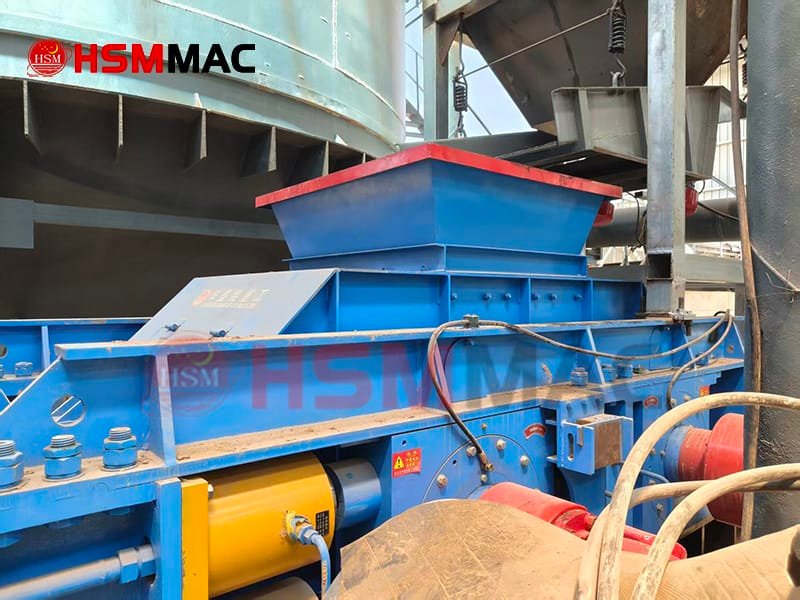

Hydraulic Adjustment System for Double-Roll Crushers
1. Verify the Root Cause of Coarser Output
• Check Roll Gap Settings
Confirm whether the gap was accidentally altered or improperly adjusted, eliminating human error from the equation.
• Inspect Feed Consistency
Check if oversized, uncrushable boulders entered the feed stream and disrupted compression efficiency.
• Inspect Roll Face Condition
If the discharge is coarse and visual inspection reveals circular grooves or surface rounding on the rolls, wear is almost certainly the cause.
2. Tiered Maintenance Strategy: Minor, Moderate, & Heavy Wear
| Wear Level | Visual & Operational Symptoms | Recommended Maintenance Action |
|---|---|---|
| Minor Wear | Slight surface rounding; discharge becomes marginally coarser. | Reduce inter-roll gap slightly to compensate; quick and tool-free. |
| Moderate Wear | Noticeable center grooves or ridges formed on the roller face. | Perform on-site hardface weld overlay to restore geometry 【Custom Parameters Available】. |
| Severe Wear | Deep micro-cracks, shell thinning, or large material flaking. | Replace with OEM high-alloy roller shells for full recovery 【Custom Parameters Available】. |

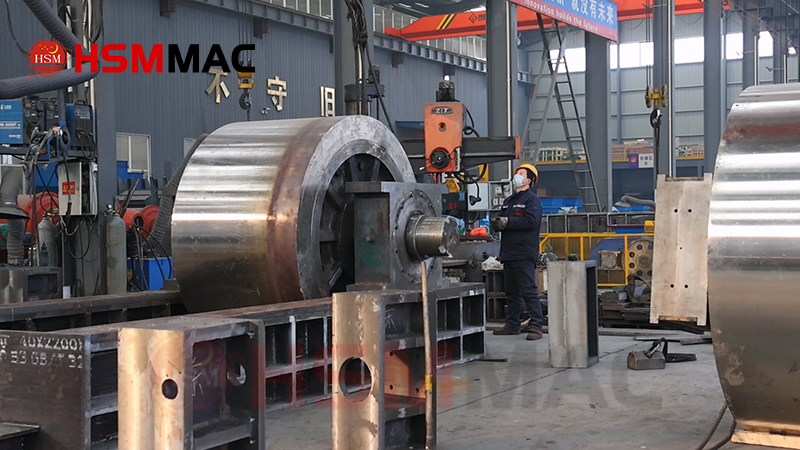

Replacing the Roll Covers on a Double-Roll Crusher
3. Best Practices to Prevent Premature Shell Wear
- Strict Top-Size Control: Prevent oversized, uncrushable boulders from entering the feed stream; most shell damage stems from improper feed control.
- Uniform Material Distribution: Use vibrating feeders to spread feed evenly across the entire roll width, preventing localized center groove wear and idling edges.
- Routine Inspection Schedule: Monitor output gradation regularly and adjust roll gaps promptly at the first sign of coarsening rather than waiting for production drops.
- Application-Matched Metallurgy: Select high-chromium or manganese alloy shell configurations tailored to your raw mineral abrasiveness 【Custom Parameters Available】.
