In many factory production lines, materials often need to be crushed from relatively large lumps (for example, 50–90mm) down to small particles of just a few millimeters. If this process is completed using only an ordinary crusher, several problems often arise: either the output is too coarse to meet requirements, or in order to achieve fine crushing, the equipment load becomes too high, making it prone to wear or jamming. Additionally, some equipment, while capable of fine crushing, generates excessive fines, which adversely affects subsequent use.
The four-roll crusher employs a simple yet practical design—the upper roll is responsible for medium crushing, and the lower roll handles fine crushing—dividing the entire crushing process into two stages, forming a “dual crushing cavity.” This structure allows the equipment to perform more stably and reliably when handling medium and fine crushing tasks.
1. Staged Crushing, Reducing Single-Stage Burden
Traditional double-roll crushers have only two rolls, with all crushing tasks concentrated within a single cavity. If the feed is large and the output is fine, the pressure between the rolls becomes very high, making slipping likely, accelerating roll surface wear, and potentially causing motor overload.
In contrast, the four-roll crusher splits the task: the upper pair of rolls has a larger gap and first compresses the large material into medium-sized particles. These medium particles then naturally fall into the gap between the lower pair of rolls, which is smaller, and are further crushed. Each stage undertakes only part of the work, resulting in more evenly distributed loads, smoother equipment operation, and fewer issues caused by an excessive single-stage crushing ratio.
2. More Uniform Output, Fewer Coarse Particles
Because the material undergoes two crushing stages—the first removing large lumps, the second focusing on processing medium-sized particles—the working conditions for the lower rolls are more stable. As a result, oversized particles in the finished product are significantly reduced, and the overall particle size distribution is more concentrated. For subsequent processes (such as grinding, pelletizing, or screening), this means a lighter burden and a smoother workflow.
For example, a sintering plant used a four-roll crusher to process return fines, with a maximum feed size of 80mm and a requirement that the output be smaller than 5mm. In the past, when using a double-roll crusher, there were often particles larger than 10mm that had “slipped through,” requiring manual sorting or rework. After switching to the four-roll crusher, coarse particles essentially disappeared. Workers said: “Now we can just feed directly into the bin without worrying about large lumps jamming the downstream equipment.”
3. Adaptability to Different Materials, More Flexible Configuration
The upper and lower rolls of a four-roll crusher can be equipped with different roll surface types. For instance, the upper roll can use toothed hardfacing rolls to enhance biting and splitting ability for large lumps, while the lower roll can use smooth rolls (plain rolls) to achieve better particle shape and less over-crushing through compression. This combination of “toothed upper + smooth lower” is very common when processing materials such as limestone, coke, and coal gangue.
Of course, toothed rolls can be used for both stages as needed (suitable for applications requiring more fines), or smooth rolls can be used for both stages (suitable for fine grinding of high-hardness materials). This flexibility allows users to choose a more suitable configuration based on their raw materials and product requirements.
4. More Stable Operation, More Convenient Maintenance
Since the crushing tasks are rationally distributed, the overall machine vibration is low, and the forces on the bearings and transmission components are more uniform. Coupled with the relatively low roll speeds (typically several tens of revolutions per minute), the equipment demonstrates reliable performance over long-term operation with a low failure rate.

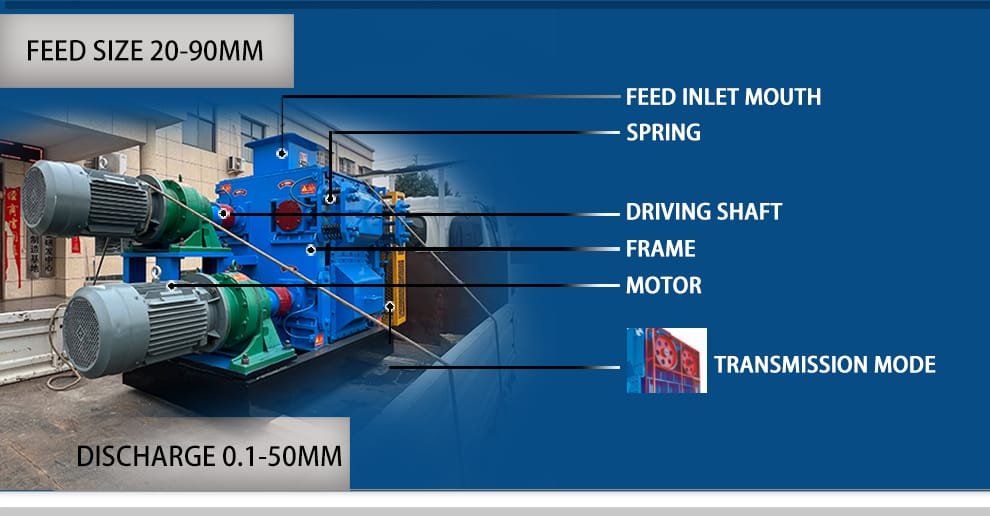

Additionally, the dual crushing cavity design makes inspection and maintenance more intuitive. The operating status of both the upper and lower cavities can be observed through viewing windows. When clearing accumulated material or replacing roller skins, the clear upper and lower structure provides ample operating space, eliminating the need to disassemble the entire machine.

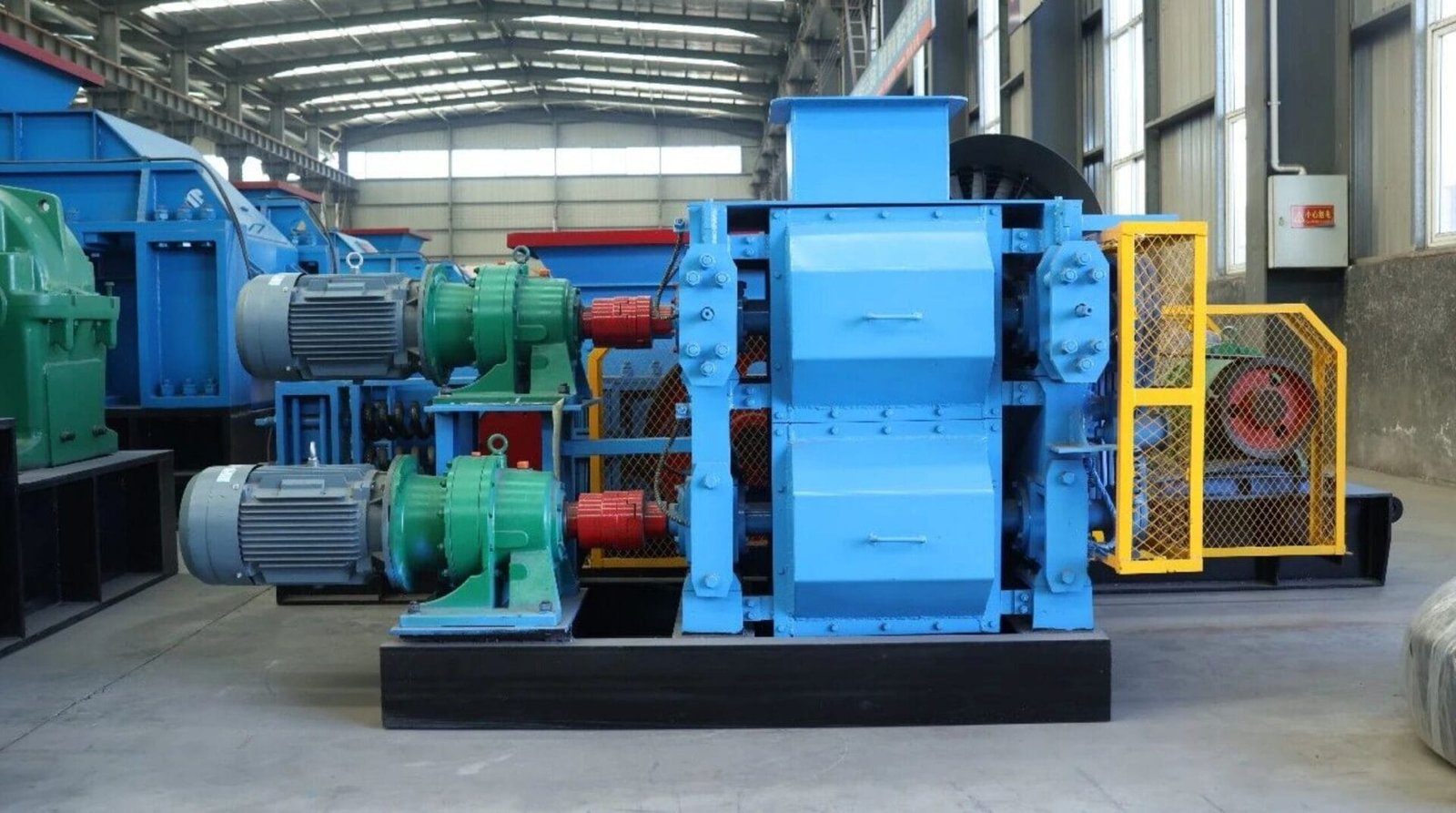

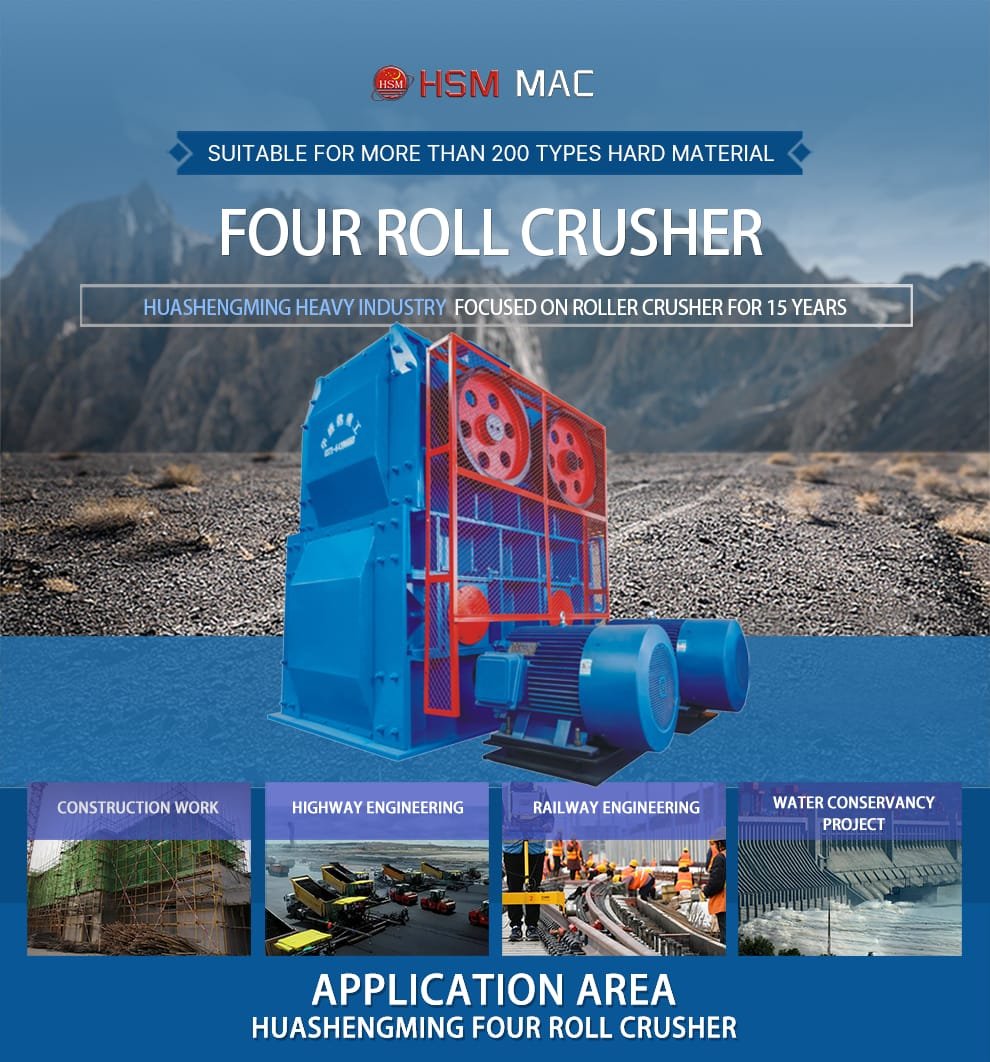

Four-Roll Crusher
5. Saving on Subsequent Stages, Simplifying the Process
Because the output particle size is relatively consistent, many users find that after adopting a four-roll crusher, they no longer need additional vibrating screens or material return systems. After being discharged from the bottom, the material can go directly into the storage bin or the next process stage. This not only saves on equipment investment but also reduces the need for belt conveyors, motors, and control systems, making the entire production line more streamlined.
A small building materials plant previously used a hammer crusher plus a screen to process construction waste bricks, requiring screen cleaning twice a day. Later, they switched to a four-roll crusher and eliminated the screening stage. Average daily operating time increased by 3 hours, and workers felt much less burdened.
Conclusion
The “upper roll medium crushing + lower roll fine crushing” structure of the four-roll crusher is not designed to pursue complexity, but rather to make the crushing process more rational and controllable. It breaks down a difficult task into two manageable steps, protecting the equipment while improving output quality. For users who need to stably crush medium-sized lumps down to a particle size of a few millimeters, this dual crushing cavity design provides a worry-free, trouble-saving, and stable operational solution. In actual production, this “step-by-step” approach often proves more reliable than trying to achieve everything “in one go.”
