Common Operational Challenges in Multi-Material Plants:
- High Capital Costs: Purchasing dedicated crushers for every material inflates equipment investment and site footprint.
- Inflexible Production: Fixed discharge gaps make switching between material specs slow and labor-intensive.
- Equipment Damage Risks: Tramp metal in mixed raw feeds causes frequent jamming and costly roll shell damage.
Does your plant need a separate crusher for each material? Sand and aggregate plants, building material processing operations, and recycling lines often handle a mix of limestone, cobblestone, coal, glass, calcite, and slate. Switching between materials is a major headache when conventional equipment is overly selective. The HSM Double Roll Crusher efficiently processes a broad range of soft to medium-hard materials: counter-rotating rolls crush via compression and shear, the discharge gap is continuously adjustable, and full-hydraulic protection shields the rolls from tramp iron. One machine covers multiple materials, maximizing plant flexibility and ROI.

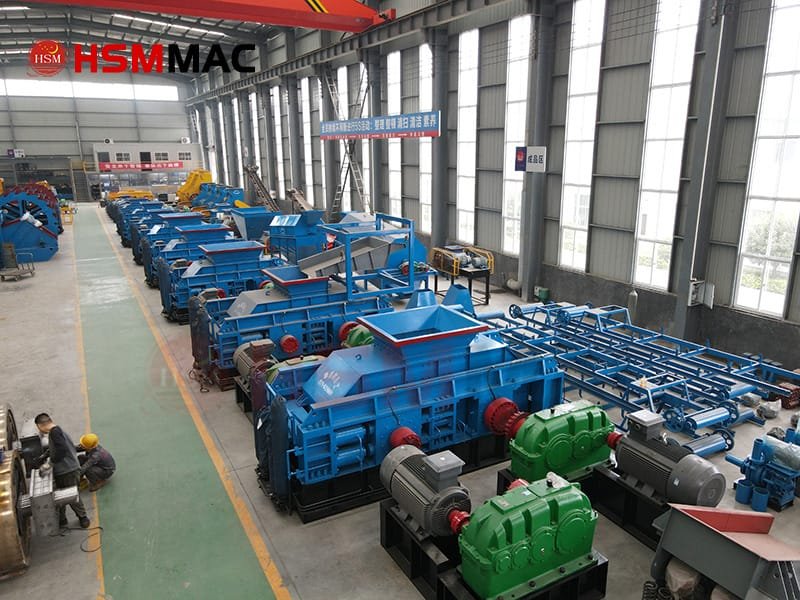

HSM Roller Crusher
1. Equipment Overview & Working Principle
The HSM Double Roll Crusher operates using two heavy-duty counter-rotating rolls. When feed material enters the crushing chamber, it is crushed by intense squeezing and shearing forces exerted between the rolls. Constructed with a heavy-duty frame, alloy rolls, an energy-efficient drive system, hydraulic protection, and a quick-gap adjustment unit, its simplified mechanical structure ensures high reliability. Precise control over the roll gap allows operators to adjust discharge size on demand—the core feature enabling multi-material versatility.
2. Key Advantages of HSM Double Roll Crusher
| Core Advantage | Engineering Feature | Operational Value |
|---|---|---|
| Wide Material Adaptability | One machine processes limestone, cobblestone, coal, glass, calcite, and slate seamlessly. | Eliminates the need for multiple single-purpose crushers, cutting capital investment. |
| Stepless Gap Adjustment | Quickly alter the distance between rolls to change the output product size. | Enables rapid product spec changes when switching raw feeds on the same line. |
| Hydraulic Tramp Protection | Automated hydraulic release backs off rolls when uncrushable objects (e.g., scrap metal) enter. | Protects roll surfaces, resets automatically, and prevents catastrophic structural failure. |
| Simplified Maintenance | Compact layout with fewer wear components and accessible service points. | Minimizes routine maintenance time and substantially lowers labor operating costs. |
| Ready Stock Availability | Popular standard models kept in factory inventory for immediate dispatch. | Shortens delivery timelines, allowing fast installation and quicker production startup. |
3. Performance Across Diverse Raw Materials
• Limestone (Medium-Hard Aggregate)
Delivers high capacity and excellent cubical grain shape, ideal for high-specification construction aggregates and cement raw materials.
• Cobblestone (Dense River Stone)
Handles dense, tough river rock smoothly with stable crushing action; widely used in manufactured sand lines to produce high-grade fine aggregate.
• Coal & Moist Raw Minerals
Efficiently processes high-moisture raw coal without clogging, producing uniform sizing for coal preparation plants and industrial power generation.
• Glass Recycling (Brittle Waste)
Provides controlled crushing for waste bottles and flat glass with minimal over-crushing, creating consistent cullet size that simplifies sorting and re-melting.
• Calcite & Slate (Minerals & Slab Waste)
Maintains clean particle shaping when processing medium-hard non-metallic minerals and slate quarry byproducts for building materials and mineral processing.
[
HSM Double-Roll Crusher in Operation
🛠 4. Typical Line Configurations
The HSM double roll crusher serves as a highly adaptable workhorse across different processing setups:
- Mixed Aggregate Plants: Acts as the secondary or tertiary crushing stage. Limestone and cobblestone can be fed alternately, with roll gaps adjusted on the fly to meet varying particle size demands.
- Glass & Recycling Facilities: Functions as the primary breaker for container glass, flat glass, and industrial slag before optical sorting.
- Custom System Engineering: Complete circuit layouts are tailored specifically to your raw material characteristics, target throughput, and site layout [Custom Parameters Available].
📋 5. Technical Selection Considerations
Key Selection Factors: Essential parameters include roll diameter, maximum feed size, output discharge range, hourly capacity (t/h), and motor power. Equipment selection should be based on your material’s Mohs hardness, moisture content, target product gradation, and capacity requirements [Custom Parameters Available].
Summary: By combining interparticle squeezing, adjustable discharge gaps, and hydraulic tramp protection, the HSM Double Roll Crusher solves the multi-material processing dilemma. It offers a cost-effective, high-flexibility solution for sand, mineral, and recycling plants looking to process varied feed stocks on a single line.
