Yes, double roll crushers are highly effective in ore and mineral processing lines—provided they are deployed in the correct stage. Positioned primarily in the medium-fine and fine crushing links ahead of ball mills, double roll crushers deliver the industry-proven economic strategy of “more crushing, less grinding.” This article examines where double roll crushers fit in typical mineral flowsheets, which ore types are best suited, three critical operational factors for hard-rock and metallic ores, and the essential technical parameters required for custom Huashengming (HSM) engineering proposals.
Yes, they can be used, and they fit exceptionally well—provided they are applied in the correct stage of the operation. In mineral processing flowsheets, the operational positioning of double roll crushers is medium-fine and fine comminution: taking ore that has already undergone secondary reduction and crushing it further to feed ball mills or downstream processing stages. Metallic ores such as iron ore, copper ore, gold ore, and manganese ore, alongside non-metallic minerals like calcite and barite, all benefit from proven, mature applications.
HSM Double Roll Crusher Operating in an Industrial Ore Beneficiation Plant
1. Where the Roll Crusher Stands in Mineral Processing Flowsheets
A typical mineral processing circuit follows a “three-stage one closed-circuit” arrangement: Coarse Crushing (Jaw Crusher) $rightarrow$ Medium Crushing (Cone Crusher) $rightarrow$ Fine Crushing $rightarrow$ Screening $rightarrow$ Grinding (Ball Mill). Double roll crushers are positioned precisely at the fine crushing stage. Their fundamental economic value can be summarized in four words: “More Crushing, Less Grinding.”
Grinding consumes the lion’s share of electricity in any beneficiation plant. Every fraction of a millimeter that fine-crushing achieves prior to milling slashes grinding energy consumption exponentially. Double roll crushers utilize low-speed compression to reduce ore to finer mill feed sizes at a fraction of the power cost required for brute-force grinding—making enhanced fine crushing the industry’s recognized standard for lowering operating costs 【Custom Parameters AvailableCummins】.
2. Ore Classification: Ideal, Adaptable, and Unsuited Materials
| Material Suitability | Ore Types & Characteristics | Operational Performance |
|---|---|---|
| Highly Suitable | Medium-to-low hardness ores: Calcite, barite, fluorite, phosphate rock, coal, and coal gangue. | Minimal roller wear, lowest operating costs per ton. |
| Adaptable (Requires Wear Matching) | Hard metallic ores: Iron ore, copper ore, gold ore, manganese ore (high hardness & abrasiveness). | Equipped with high-chromium wear-resistant roller shells for stable, long-term operation 【Custom Parameters Available】. |
| Not Recommended | Extremely muddy and high-moisture sticky ores. | Requires upstream washing or pre-drying; otherwise, roll faces risk material packing and blockage. |

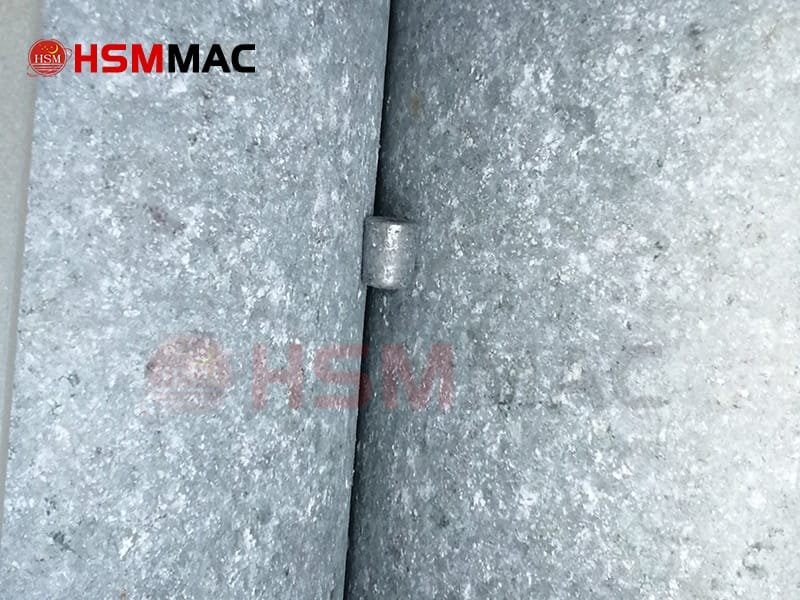

High-Chromium Roll Shells
3. Three Critical Factors Under Ore Operating Conditions
- 1. Strict Feed Size Control: Depending on the machine model, double roll feed limits range from 25mm to 120mm. Massive raw ore boulders must always pass through primary and secondary reduction first; never force a double roll crusher to perform coarse reduction.
- 2. Match Roll Metallurgy to Ore Hardness: Abrasive metallic ores like iron and copper directly dictate roller shell lifespans. Accurately communicate ore compressive hardness and quartz content during selection so HSM can engineer custom alloy roll faces 【Custom Parameters Available】.
- 3. Regulate Discharge Sizing via Roll Gaps: Adjust inter-roll gaps precisely to meet mill feed sizing specifications. When switching ore types on the same production line, adjustments are executed entirely via mechanical or hydraulic gap settings without replacing core mechanical components.
4. Reference Mineral Plant Configuration
Standard Proven Beneficiation Flowsheet:
Vibrating Feeder $rightarrow$ Jaw Crusher (Primary Coarse Reduction) $rightarrow$ Cone Crusher (Secondary Medium Reduction) $rightarrow$ Double Roll Crusher (Fine Reduction & Sizing) $rightarrow$ Circular Vibrating Screen (Closed-Circuit Oversize Return Loop) $rightarrow$ Fine Ore Bin / Grinding Ball Mill.
Capacities range from compact units (e.g., 2–10 TPH) up to high-capacity heavy-duty industrial models, engineered precisely to ore type, target mill feed size, and hourly throughput requirements 【Custom Parameters Available】.
5. Four Essential Parameters for Accurate Sizing
To receive a precise engineering proposal and quotation, please provide:
- Ore Name & Hardness Index: (e.g., iron ore, copper ore, calcite, gold ore)
- Maximum Feed Lump Dimensions: (Top-size entering the fine crushing stage)
- Target Mill Feed Sizing or Product Fineness: (Required output grading specs)
- Expected Processing Capacity: (Tons per hour target)
Providing these four details allows Huashengming to specify exact equipment models, roll dimensions, motor power ratings, roller metallurgies, and complete circuit flowsheets 【Custom Parameters Available】. Referenced process descriptions serve as engineering guidelines; specific applicability is governed by ore material testing and formal project agreements.
