Field Case Study: High-Throughput Mineral Refining via Heavy Hydraulic Double Roll Crushers
Optimizing material liberation matrices and manufactured aggregate yield through intelligent electromechanical-hydraulic integration loops.
1. Engineering Overview
The Large-Scale Hydraulic Double Roll Crusher represents the benchmark in heavy-duty, energy-focused comminution technology. It is built to maintain relentless output profiles across high-capacity mining concessions, metallurgic processing sites, infrastructure sand plants, and massive solid waste resource regeneration circuits.
By anchoring its operations on advanced electromechanical-hydraulic loop controls, this system exerts continuous, massive crushing forces to achieve highly repeatable medium and fine material reduction. Outfitted with immediate uncrushable circuit protection, adaptable sizing controls, and specialized alloy roll segments, the machine delivers a highly stable, high-tonnage blueprint that fulfills rigorous environmental compliance targets worldwide.

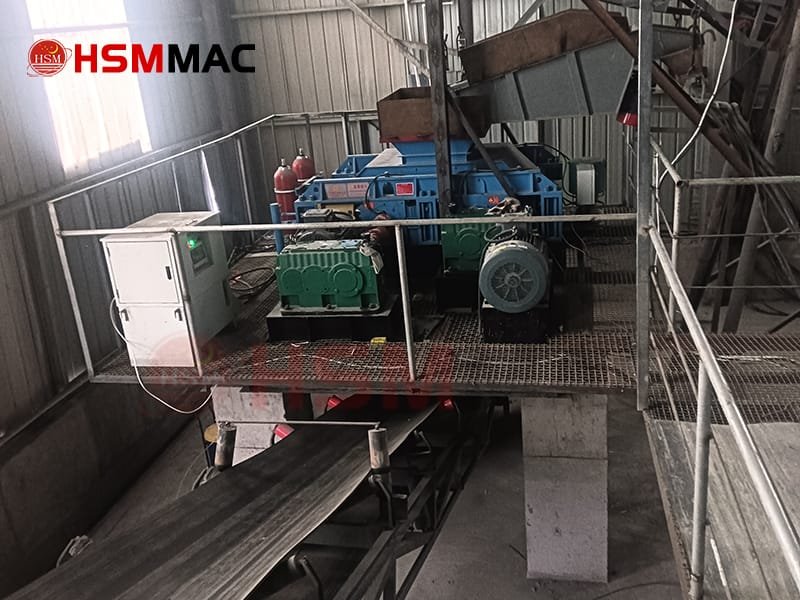

Large Double Roller Crusher Operating On-Site
2. Operational Case Benefits
The integrated system automatically retracts the movable roll framework whenever uncrushable tramp metals or steel fragments breach the chamber. It resets instantly to preserve internal component geometry and facilitate unbroken, 24/7 processing campaigns.
By moving from traditional dynamic impact methods to high-pressure parallel material extrusion, our plants lower active energy demands by 20% to 30%, while elevating baseline tonnage capabilities by 30% to 40% over legacy milling layouts.
Roll surfaces are poured from specialized high-chromium manganese formulas, ensuring 3 to 5 times the operational endurance under abrasive conditions. The structural layout uses segmented modules to allow fast, friction-free replacement routines.
Automated PLC interfaces monitor and fine-tune the physical roll gap seamlessly under load. This precise regulation yields premium, highly dense cubic material fractions with negligible needle-flake waste, easily matching strict international gradation rules.
Engineered with a robust, vibration-isolating structural enclosure linked with dedicated suction dust extraction networks, the processing system seals off low-frequency resonance and keeps airborne particulates well within corporate eco-mandates.
3. Kinetic Mechanism
Designed for continuous bulk material refining, the plant utilizes a high-yield inter-particle compression logic. This physical mechanism delivers rigid product control alongside reduced mechanical power wear:
1. Regulated Feed: Raw materials flow from the automated charging surge hopper directly into the core reduction zone positioned exactly between the twin parallel rollers.
2. Active Capture: High surface friction coefficients and gravitational weight guide the incoming rock smoothly down into the narrowing pinch point.
3. High-Pressure Shear: As the heavy rolls counter-rotate, materials undergo deep, intense compression. Once this direct force overpowers the rock’s internal compressive threshold, it shears naturally along existing crystal boundaries.
4. Gravity Outflow: Correctly sized particles slip cleanly down through the bottom discharge area, finishing the processing loop with a highly uniform laminar material distribution.
4. Technical Specifications
| Model | Roll Diam. (mm) | Roll Width (mm) | Max Feed (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|---|
| 2PGY750×500 | φ750 | 500 | ≤40 | 20 – 30 | 2×(22-30) |
| 2PGY800×600 | φ800 | 600 | ≤40 | 30 – 40 | 2×(30-37) |
| 2PGY800×800 | φ800 | 800 | ≤40 | 40 – 50 | 2×(37-45) |
| 2PGY1000×800 | φ1000 | 800 | ≤40 | 50 – 80 | 2×(45-55) |
| 2PGY1000×1000 | φ1000 | 1000 | ≤60 | 80 – 100 | 2×(75-90) |
| 2PGY1200×1000 | φ1200 | 1000 | ≤80 | 100 – 120 | 2×(75-132) |
| 2PGY1500×1200 | φ1500 | 1200 | ≤120 | 150 – 200 | 2×(132-160) |
| 2PGY1800×1000 | φ1800 | 1000 | ≤100 | 250 – 300 | 2×(250-315) |
| 2PGY2000×1200 | φ2000 | 1200 | ≤120 | 300 – 400 | 2×(315-355) |

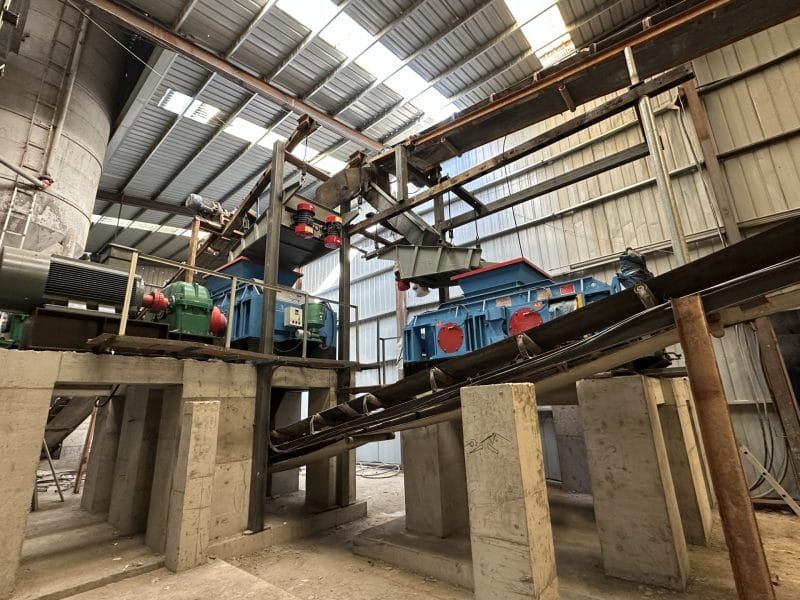

Hydraulic Double Roll Crushers
5. Cross-Industry Integration Scope
High-precision size reduction of copper ore, gold stone, limestone, and iron matrices. Maximizes pre-grinding output when running upstream of mill circuits to expand total plant liberation limits.
Supplies clean manufactured sand and concrete gravel for expressways, dams, and concrete batch lines requiring uncompromising structural shape cubicity.
Manages massive raw feed preparation, cement clinker reduction, coal gangue processing, and industrial gypsum sizing across high-volume production operations.
Feeds uniform pre-crushed coal products to industrial boiler environments, while processing steel refinery slag, quicklime lumps, and porous furnace byproducts.
Shatters rigid cured concrete structures, structural brick, stone masonry debris, and mineral tailings to fast-track resource reclamation and compliance-safe solid waste recovery.
Delivers controlled, dust-minimized sizing layouts for complex industrial minerals, bauxite deposits, raw quartz blocks, and sensitive refractory compound mixes.
