Mineral-Specific Engineering
High-Purity Potassium Feldspar Fine Crushing Solutions
Advanced hydro-roller comminution engineered for K-Feldspar: Eliminating iron contamination, suppressing over-crushed powder, and maximizing downstream milling efficiency.
1. Overcoming Bottlenecks in K-Feldspar Processing
Potassium Feldspar (K-Feldspar) serves as a foundational mineral for premium ceramic glazes, fiberglass matrices, and optical glass batches. However, reduction via traditional high-velocity impact or hammer mills severely degrades market value due to excessive over-crushing rates (producing useless slime fines) and severe iron friction pollution. This iron residue discolors the mineral grain during high-temperature sintering, ruining whiteness grades.
Our customized Hydraulic Double Roller Crushing Layout trades dynamic shattering for controlled, high-pressure parallel material extrusion. Running at low RPMs with non-magnetic, ultra-wear-resistant alloy roller skins, it fractures the raw feldspar neatly along natural crystal cleavages, ensuring a clean, iron-free, highly cubic product yield.

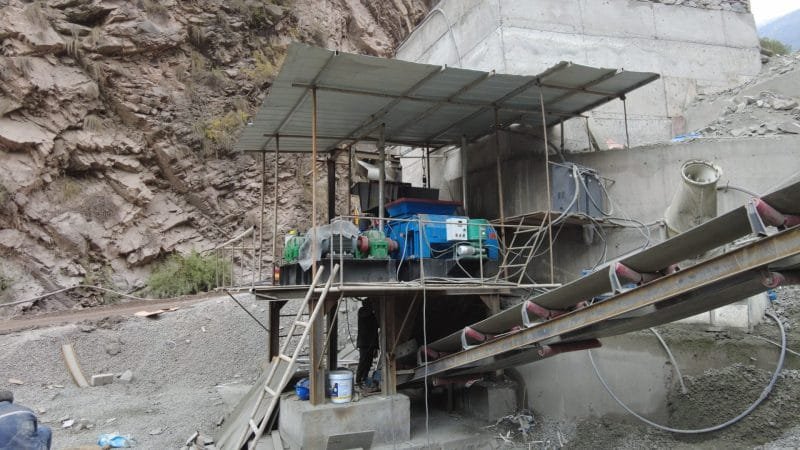

Potassium Feldspar Iron-Free Fine Crushing Circuit Layout
2. Potassium Feldspar Technical Matrix
Phase A: Non-Magnetic Iron Contamination Eradication
To safeguard the absolute whiteness values required by high-grade ceramic batching, our system integrates specialized non-magnetic high-alloy roll assemblies. Unlike high-speed mills that lose significant iron dust into the feed, our low-RPM, high-torque rollers pinch materials under pure static force, drastically mitigating mechanical wear and protecting raw mineral purity.
Phase B: Fines Suppression & Cleavage Optimization
Feldspar structures feature high cleavage brittleness. Benefiting from the parallel static pressure concept, rocks undergo a single, targeted compression pass while migrating through the hydraulic roll gap. This synchronized flow eliminates redundant milling impact, trimming useless over-crushed sludge fractions by 15% to 25% to maximize usable granular distribution.
Phase C: Programmable Feed Conditioning for Ball Milling
Modifying the physical roller clearance via real-time PLC hydraulic cylinders allows plants to lock down accurate sizing output from 2mm to 10mm seamlessly under load. Passing this pre-conditioned, micro-fractured cubic feed into downstream ball mills relieves the grinding burden, expanding ultimate ball mill throughput limits by 30% to 40%.
Phase D: Automated Relief Against Vein Quartz Hazards
Natural feldspar veins often house aggressive accessory structures like hard vein quartz blocks. When uncrushable mineral clusters enter the chamber, the automated hydraulic system senses the pressure surge instantly, retracting the movable roll to bypass the obstruction safely before auto-adjusting back to baseline parameters in seconds.
3. Recommended Systems for K-Feldspar Processing
| System Model | Max Input Size | K-Feldspar Output Capacity | Total Power |
|---|---|---|---|
| 2PGY800×800 | ≤ 40 mm | 40 – 50 t/h | 2 × (37 – 45) kW |
| 2PGY1000×1000 | ≤ 60 mm | 80 – 100 t/h | 2 × (75 – 90) kW |
| 2PGY1200×1000 | ≤ 80 mm | 100 – 120 t/h | 2 × (75 – 132) kW |
| 2PGY1500×1200 | ≤ 120 mm | 150 – 200 t/h | 2 × (132 – 160) kW |
hydraulic roller crusher
4. Quantifiable Value for Milling Plants
With iron friction drops held near undetectable ranges, the processed K-Feldspar fractions qualify directly for premium grade-A ceramic glaze and optical crystal matrix supplies.
Parallel static pressure execution drastically lowers standard mechanical kinetic draw, cutting monthly raw facility electrical utility outlays when matched against high-velocity vertical impact designs.
Our custom high-chromium manganese matrix formulas provide exceptional structural endurance when handling highly abrasive silicate formations, minimizing maintenance interruptions.
Heavy, vibration-isolated structural dust enclosures keep fine feldspar particulates locked tightly inside the circuit flow, comfortably clearing stringent international clean-air standards.
Optimize Your Feldspar Whiteness Potential Today
Connect with our mineral refining consultants. Send us your raw feldspar Mohs hardness values and deposit profiles, and we will model a customized iron-free crushing configuration for your site.
