Introduction: Coke crusher, also known as the coke double-tooth roller crusher, is a high-capacity mining machinery primarily composed of two sets of high-strength wear-resistant tooth roller...

Coke crusher, also known as the coke double-tooth roller crusher, is a high-capacity mining machinery primarily composed of two sets of high-strength wear-resistant tooth rollers. During operation, the two sets of rollers rotate in opposite directions, pulverizing materials through shearing and compression. Featuring a compact structure and straightforward operation, it is suitable for coarse and medium crushing of medium-hardness materials such as coal, coke, and ores. It offers a high crushing ratio, high efficiency, low energy consumption, and easy maintenance. Particularly adaptable to sticky and wet materials with minimal clogging, it is widely used in coal preparation, metallurgy, chemical processing, and other industries.

1.Coke Crusher

Feed Size: 80-1050mm

Production Capacity: 7-300 t/h

Suitable Materials:

Construction waste, milled material, silicate, coal gangue, coal, coke, asphalt blocks, calcined coke, glass, limestone, silica, silicomanganese ore, ceramics, and similar materials

Application Scope:

Suitable for coal, metallurgy, mining, chemical, and building materials industries. Particularly effective for crushing raw coal (including gangue) in large coal mines or coal preparation plants.

2.Working Principle

The coke crusher utilizes two wear-resistant alloy tooth rollers. The high compressive force generated by their counter-rotation crushes the material. After entering the gap between the two rollers (V-shaped crushing chamber), the material is crushed to the required particle size through squeezing, shearing, and grinding, then discharged by conveying equipment.

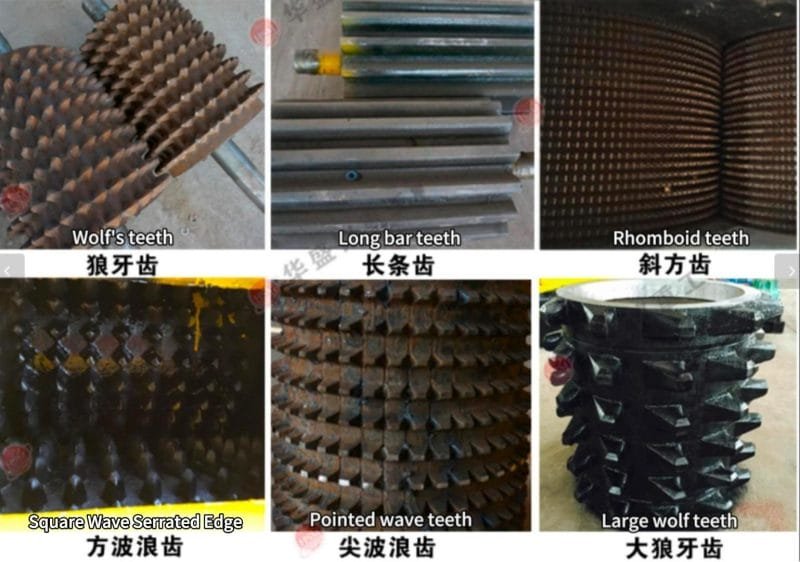

3.Tooth Profile Classification

The tooth profiles of coke crushers can be categorized as follows: long-strip teeth, wolf teeth, square wave teeth, pointed wave teeth, oblique square teeth, large wolf teeth (reinforced, enlarged, wear-resistant), and other tooth profiles.

4.Performance Advantages

1. High crushing ratio with low over-crushing rate
2. Huashengming’s proprietary roller shell material offers twice the durability of standard roller shells
3. Single-unit hourly output ranges from 5 to 2000 tons, suitable for large, medium, and small-scale projects
4. Produces well-formed, rounded particles with minimal powder content
5. Flexible crushing process preserves the original structure of materials
6. Simple maintenance, user-friendly operation, and labor savings
