In limestone processing, the selection of crushing equipment directly determines product quality and overall line capacity. Given the wide availability and diverse applications of limestone, Hua Sheng Ming has developed a roll crusher solution tailored to limestone material characteristics and site conditions, providing reliable equipment support for limestone fine crushing.

Core Requirements in Limestone Processing

Limestone is widely used in building materials, metallurgy, chemical engineering, and other industries, serving as the primary raw material for aggregates and cement production. The processing challenge lies in achieving the target particle size with minimal over-grinding while ensuring long-term, stable operation. Traditional multi-stage crushing processes (jaw crusher + impact crusher or cone crusher) require significant equipment investment, occupy large footprints, involve complex flowsheets, and incur high energy and maintenance costs.

limestone

Advantages of the Roll Crusher

The Hua Sheng Ming roll crusher operates on the inter-particle crushing principle. Two counter-rotating rollers apply sustained compressive force, causing limestone to fracture along natural纹理 and fissures rather than through high-speed impact. This crushing method is inherently well-suited to limestone’s material properties:

Narrow Particle Size Distribution, Low Over-grinding: Compressive crushing generates significantly fewer fines than impact crushing, resulting in a concentrated particle size distribution. The hydraulic or spring system allows online adjustment of the roll gap, enabling discharge size to be flexibly controlled between 0.5mm and 20mm to meet the requirements of different downstream processes.

Stable Processing of Both Dry and Wet Materials: The roll crusher has no screen bottom structure—material is discharged directly after crushing, so it does not clog even when limestone has relatively high moisture content. This feature is particularly valuable in rainy southern regions or open-air stockpile operations.

Wear-Resistant Roll Shell for Limestone Applications: Although limestone is primarily composed of calcite, it may contain hard minerals such as quartz that cause wear on the roll surface. The roll shell is manufactured using Hua Sheng Ming’s proprietary formulation and process, with an average service life of over 2 years, effectively reducing the frequency of parts replacement.

Applicable Scenarios and Process Configurations

The Hua Sheng Ming roll crusher can process limestone and other medium-hard materials with compressive strength up to 250MPa, with feed sizes ranging from 25mm to 100mm and capacities covering 2 to 400 tons per hour. Depending on site conditions, two configurations are available: spring-type (2PGT series) and hydraulic-type (2PGY series).

limestone roll crusher

The spring-type features a simple structure and easy adjustment, suitable for small to medium-scale production lines. The hydraulic type is equipped with an overload protection system—when encountering unbreakable material, the movable roller automatically retracts to discharge the object and then resets, effectively protecting core components. This configuration is ideal for large-scale production lines requiring long hours of continuous operation.

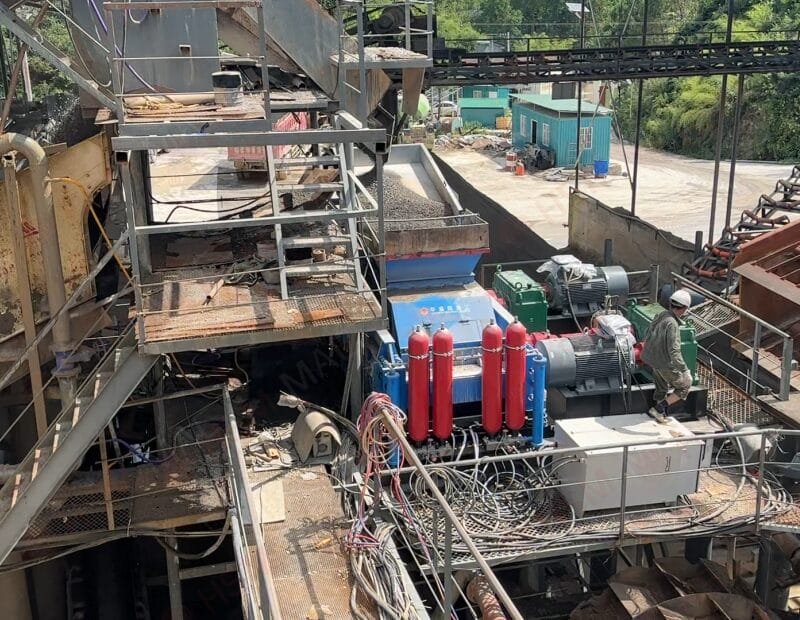

In actual project applications, a sand and gravel plant in Hubei Province uses the Hua Sheng Ming 2PGY1510 full-hydraulic roll crusher to process limestone raw material, with a maximum feed size of ≤80mm, a capacity of 150-200 tons per hour, and equipped with two 160kW motors. Since commissioning, the equipment has delivered good product particle shape, uniform particle size, and low over-grinding rate. The roll shell exhibits strong wear resistance and minimal loss, effectively reducing maintenance and replacement frequency, fully validating the practical performance of the roll crusher in limestone fine crushing.

In terms of process configuration, the roll crusher can operate independently for fine crushing and sand making, or be combined with a jaw crusher for a two-stage “coarse crushing + roll fine crushing” process, producing fine and uniform discharge that meets the requirements for sand making or dry-mix mortar production.

Conclusion

The key to limestone crusher selection lies in balancing product particle size, over-grinding rate, and operational stability. With its inter-particle crushing technology, the Hua Sheng Ming roll crusher is well-suited to limestone’s material characteristics, providing both small to medium-sized aggregate plants and large-scale production lines with a crushing solution that delivers both efficiency and quality.
