Technology Overview: Moving away from violent impact mechanisms, the High-Pressure Grinding Roll (HPGR) employs a quasi-static, interparticle bed crushing principle under intense hydraulic pressure (exceeding 150 MPa). By creating a dense particle bed between two counter-rotating rolls, material fractures along grain boundaries, generating micro-cracks that dramatically reduce grinding energy consumption. Huashengming Heavy Industry delivers robust HPGR solutions featuring advanced wear-resistant roll shells, smart hydraulic overload protection, and high-efficiency pre-grinding capabilities.
Huashengming High-Pressure Grinding Roll (HPGR)
⚙️ How HPGR Works: The Interparticle Compression Mechanism
Unlike traditional crushers that rely on high-speed kinetic impacts or simple jaw compression, the HPGR introduces a controlled “particle bed crushing” mechanism:
| Phase | Mechanical Process |
|---|---|
| 1. Controlled Feeding | Material is continuously fed into the gap between fixed and floating counter-rotating rolls. |
| 2. High-Pressure Bed Compaction | Hydraulic cylinders exert forces exceeding 150 MPa, forming a densely packed bed where particles crush, shear, and rub against each other. |
| 3. Micro-Fissure Flake Discharge | Discharged material exits as dense flakes filled with internal micro-cracks, making downstream ball mill grinding far more efficient. |
🚀 Key Technical Advantages of Huashengming HPGR
- Extreme Energy Savings (30%–50% Power Reduction): By dropping grinding feed sizes to 3–5 mm and increasing fine particle content (<1 mm), downstream ball mill loads drop significantly, boosting total plant capacity.
- Automated Hydraulic Tramp Protection: Intelligent PLC systems monitor pressure and current continuously. Real-time hydraulic cushioning retracts rolls instantly upon encountering non-crushable metal fragments, then automatically resets without halting operation.
- Versatile Application & Eco-Friendly Design: Enclosed dust suppression and low-noise engineering make the unit suitable for metallic ores (iron, copper, gold), hard rock sand making (granite, basalt), and industrial waste recycling (steel slag).

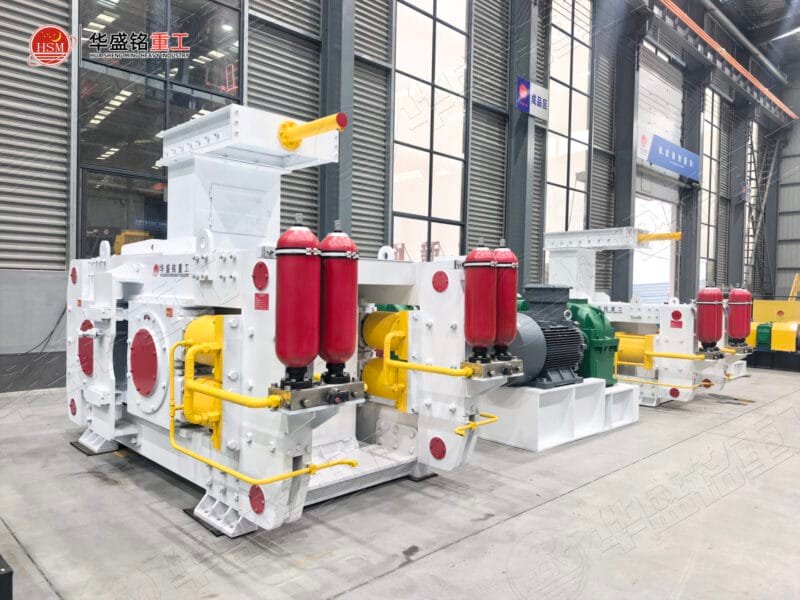

High-Pressure Grinding Roll (HPGR)
🛡️ Two Specialized Wear-Resistant Roller Shell Options
To combat harsh abrasion from high-hardness ores, Huashengming offers two tailored roller surface technologies:
| Technology | Manufacturing Characteristics | Ideal Material Applications |
|---|---|---|
| Centrifugal Cast Roller Skin | Uses centrifugal casting to achieve metallurgical bonding between base and wear layers; increases impact resistance by 50% without spalling. | Medium-to-high hardness ores requiring large-scale, continuous stable operation. |
| Tungsten Carbide Studded Roller | Features tungsten carbide studs (HRC 81+) arranged via computer simulation. Trapped material forms a protective auto-lining (“rock-on-rock” wear mode), offering 2–3x longer lifespan than hardfacing. | Ultra-hard and highly abrasive materials such as iron ore, taconite, and steel slag. |
Full Lifecycle Engineering Services: Beyond standalone performance, Huashengming Heavy Industry delivers tailored, end-to-end solutions. From initial site surveys and laboratory mineral testing to custom circuit design, installation, and field service support, we ensure seamless integration into your grinding plant layout.
