Key Technical Highlights & Problem-Solving Takeaways:
- Overcomes High Hardness & Smooth Surface Slip: Dual counter-rotating roll friction pulls smooth, rounded river pebbles directly into the high-pressure compression zone without slippage or chamber bouncing.
- High-Alloy Wear Protection: Equipped with high-chromium/manganese alloy roller shells and automatic hydraulic tramp relief to resist abrasive quartz erosion and protect drive shafts.
- Superior Manufactured Sand Gradation: Inter-particle bed compression produces plump, cubical polyhedral particles with low flakiness and controllable micro-fines (<75μm).
- Optimized Two-Stage Circuit: Integrates seamlessly into standard plant flowsheets:
Vibrating Feeder → Primary Jaw Crusher → River Pebble Roll Sand Maker → Vibrating Screen → Wheel Sand Washer.
River pebbles (cobblestones) are widely recognized as one of the most challenging raw materials for manufactured sand production due to their extreme hardness, high quartz content, and smooth rounded exterior. Traditional kinetic impact crushers often suffer from material slippage, rapid wear component erosion, and high dust generation when processing river pebbles. Utilizing high-pressure inter-particle bed compression, the Huashengming (HSM) River Pebble Double Roll Sand Maker grips smooth stone reliably, delivering uniform cubical sand, extended wear part life, and low energy draw. HSM provides customized river pebble sand-making solutions backed by factory material trial testing.

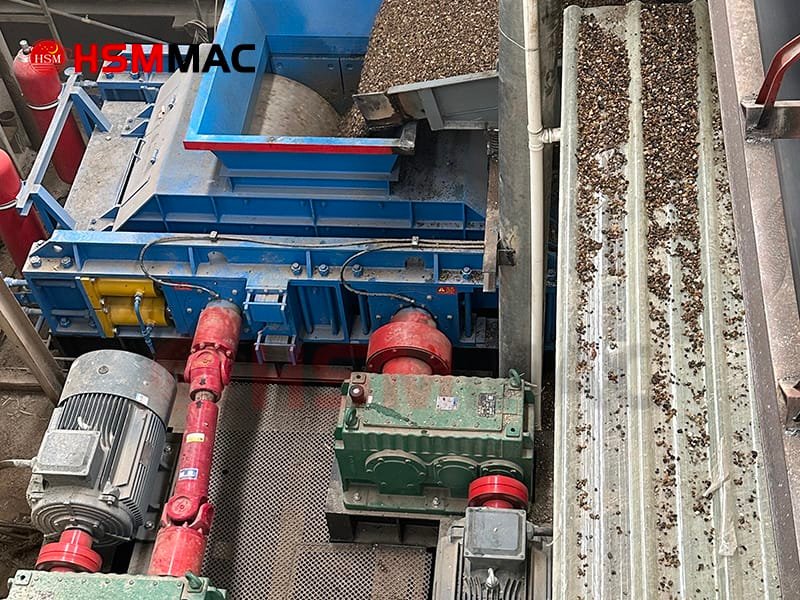

HSM Double Roll Sand Making
1. Why Is River Pebble Sand-Making So Difficult?
- 1. Extreme Hardness & High Abrasiveness: River pebbles consist largely of dense silica/quartz with high compressive strength. Standard blow bars and anvil liners erode rapidly under high-velocity impact.
- 2. Smooth Rounded Exterior Causes Chamber Slip: Rounded stone surfaces lack sharp corners for impact hammers to grip easily. Rocks bounce inside impact chambers, causing excessive wear and sharp throughput drops.
- 3. Strict Particle Shape Standards for Concrete: High-grade commercial concrete requires cubical aggregate with minimal needle-like or elongated flakes—a shape profile difficult to achieve consistently with conventional crushers.
2. How Huashengming Technology Overcomes These Obstacles
• Positive Friction Engagement (No Chamber Slippage)
Dual counter-rotating rollers apply continuous frictional nip force to rounded river pebbles, drawing them down steadily into the compression zone without bouncing or idling.
• Heavy-Duty Alloy Metallurgies & Hydraulic Protection
Roller sleeves are cast from high-chromium and high-manganese alloy composites specifically formulated to withstand abrasive quartz. An automatic hydraulic relief accumulator bypasses uncrushable tramp metal safely 【Custom Parameters Available】.
• Hydraulic Gap Control for Exact Fineness Modulus
Operators can adjust the discharge roller gap precisely via hydraulic controls to yield stable 0–3mm or 0–5mm concrete sand gradations matching strict engineering specs.
• Inter-Particle Bed Compression for Cubical Shape
Rocks fracture along natural cleavage planes under high compressive pressure, producing plump, multi-angular sand grains with extremely low needle/flaky ratios.
3. Performance Matrix: Double Roll Sand Maker vs. VSI Impact Crusher
| Performance Metric | HSM River Pebble Double Roll Crusher | Traditional VSI Impact Crusher |
|---|---|---|
| Material Grip & Intake | Positive Roller Friction Pull (No Slippage) | High Bouncing & Anvil Slippage on Smooth Rock |
| Wear Part Replacement Frequency | Extended Service Intervals (Alloy Sleeves) | Frequent Impeller / Anvil Replacement (High OPEX) |
| Power Consumption per Ton | Low (Direct Squeeze Compression) | High (Kinetic Air Resistance & Rotational Drag) |
| Micro-Fine Powder Generation | Minimal Over-Grinding (<10% Waste Dust) | High Dust Generation (Burdens Washing Circuit) |
River Pebble Sand Plant
4. Recommended River Pebble Plant Circuit Layout
To maximize throughput and protect equipment wear components, Huashengming recommends a two-stage crushing and washing circuit:
Flowsheet: Vibrating Feeder → Primary Jaw Crusher → River Pebble Roll Sand Maker → Vibrating Screen → Wheel Sand Washer
- Primary Stage (Jaw Crusher): Breaks large quarry river boulders (>100–300mm) down to safe secondary feed sizes (<40–80mm).
- Secondary Sand Stage (Double Roll Crusher): Performs fine compression crushing to reduce stone down to 0–5mm manufactured concrete sand.
- Screening Stage (Vibrating Screen): Separates target sand from oversize material; oversize returns in a closed loop.
- Washing Stage (Wheel Sand Washer): Cleans residual clay and silt to yield premium commercial-grade concrete aggregate.
Transform Your River Pebbles into High-Margin Concrete Sand:
Huashengming Heavy Industry provides tailored line engineering, fast-ship factory inventory, and custom roller configurations 【Custom Parameters Available】.
Contact HSM engineers today to schedule a free raw material sample trial run and receive a customized equipment proposal.
