Strategic Division of Labor for Maximum Plant Efficiency:
- Primary vs. Secondary Specialization: Jaw Crushers handle large run-of-mine (ROM) boulders (Primary stage), while Double Roll Crushers perform precise size reduction and shaping (Secondary/Fine stage).
- Optimized Wear & Energy Costs: Matching material size to the correct crushing mechanism prevents motor overloads, reduces liner gouging, and stabilizes plant throughput.
- Seamless Closed-Circuit Integration: Combining both machines with vibrating feeders and screens yields a continuous circuit with consistent output grading and low fines.
Why does a complete aggregate or mineral crushing line require both a Jaw Crusher and a Double Roll Crusher? Because reduction is a step-by-step process—no single machine can efficiently reduce 500mm boulders down to 5mm fine aggregate in a single pass. A Jaw Crusher excels at high-impact primary breaking, while a Double Roll Crusher delivers precision squeeze crushing and uniform sizing. Huashengming (HSM) integrates both machines into fully engineered plant configurations tailored to your specific rock type and target output.
Jaw Crusher → Double Roll Crusher
1. Why Single-Stage Crushing Fails for Heavy Aggregates
Attempting to process raw quarry rock with only one equipment type leads to severe operational bottlenecks:
- Mechanical Constraints: Large feed openings require massive mechanical frames, whereas fine product gaps require precise mechanical clearance controls.
- Excessive Wear & Energy Wastage: Running large rocks directly into fine crushers causes bouncing, surface gouging, and high power spikes.
- Balanced Workload: Assigning coarse breaking to Jaw Crushers protects the alloy shells of Double Roll Crushers, extending overall plant component life.
2. Detailed Breakdown of Machinery Roles
• Primary Stage: Jaw Crusher (The Coarse Opener)
Role: First-stage reduction for large run-of-mine (ROM) boulders.
Features: Large feed opening, heavy flywheel momentum, high resistance to compressive impact.
Output: Reduces large rock to intermediate aggregate (<100–150mm) to prepare feed for downstream machinery.
• Secondary / Fine Stage: Double Roll Crusher (The Size Finisher)
Role: Second-stage reduction and aggregate shaping.
Features: High-pressure dual-roller squeeze crushing, adjustable gap setting, low fine dust generation.
Output: Delivers uniform cubical aggregate or manufactured sand ready for screening, washing, or milling.
3. Comparative Technical Functionality
| Feature / Metric | Jaw Crusher (Primary) | Double Roll Crusher (Secondary) |
|---|---|---|
| Primary Objective | Large volume reduction from ROM stone. | Precise size control & grain shaping. |
| Acceptable Feed Size | Large (up to 500–1000mm). | Medium/Fine (<30–100mm depending on model). |
| Crushing Mechanism | Dynamic jaw plate toggle compression. | Counter-rotating dual roller squeeze. |
| Discharge Characteristics | Coarse, variable grading. | Uniform cubical aggregate, adjustable fines. |

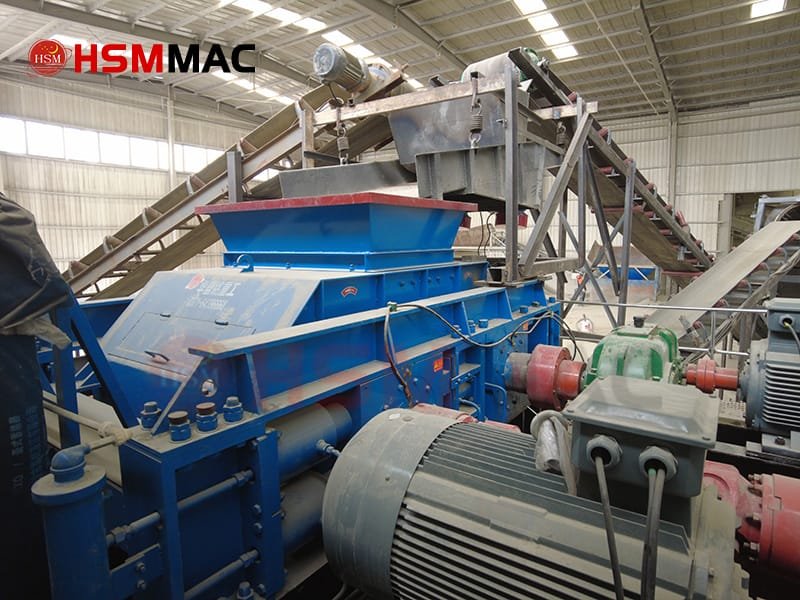

Double Roll Crusher
4. Huashengming (HSM) Turnkey Plant Support
- Custom Plant Configurations: Complete circuit engineering designed to match your raw rock hardness, feed size distribution, and target hourly tonnage 【Custom Parameters Available】.
- Closed-Loop Recirculation: Systems can include vibrating screen return loops to re-route oversized material automatically, guaranteeing 100% aggregate compliance.
- In-Stock Factory Delivery: Standard Jaw Crusher and Double Roll Crusher models are maintained in factory inventory for fast turnarounds.
- Free Material Sample Testing: Send your raw rock samples to HSM for full-scale crushing teststand trials prior to equipment finalization.
Standard Plant Flow: Vibrating Feeder → Jaw Crusher (Primary) → Double Roll Crusher (Secondary) → Vibrating Screen.
Contact Huashengming today to request customized circuit parameters and free material testing.
