High Fines Content Directly Impacts Profitability & Operating Costs:
- Low Over-Crushing Rate: Operating primarily on compression and shear crushing, the double roll crusher squeezes material rather than pulverizing it, generating significantly fewer ultra-fine particles and dust.
- Moderate & Controllable Fines: By setting a precise gap between the rollers, operators can keep stone powder within ideal ranges for well-balanced aggregate grading without overloading the sand washer.
- Better Value & Lower Washing Costs: Compared to high-speed impact crushers, roll crushing reduces water/power consumption during washing and yields higher market prices per ton.
Excessive micro-powder and ultra-fine dust are among the biggest headaches in manufactured sand production: high fines lower the selling price, strain sand-washing systems, and disrupt aggregate gradation. By relying on low-speed compression rather than high-velocity impact, double roll sand making machines minimize over-crushing and keep stone powder at a balanced, controllable level. Huashengming (HSM) double roll crushers support material sample testing to verify fines content and optimize finished product quality for aggregate producers.

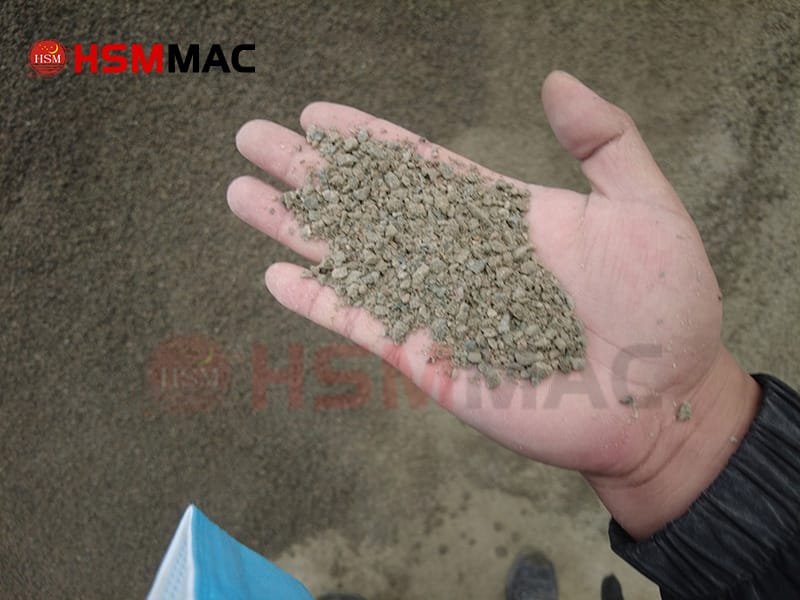

Clean Manufactured Sand Sample & Sieve Analysis
1. Why High Fines Content Is a Major Pain Point in Sand Production
In sand manufacturing, excessive fines and dust directly impair product performance and erode operating margins:
- Lower Selling Price & Profit Margins: Sand with excess dust often fails strict concrete gradation standards and is forcibly price-discounted by buyers.
- Increased Sand Washing Costs: High fines require extra water, higher electricity usage, and additional washing cycles, accelerating equipment wear and raising water treatment expenses.
- Disposal & Environmental Pressure: Storing and handling large quantities of wet silt or dry fine dust creates secondary processing costs and environmental compliance challenges.
2. Does a Double Roll Crusher Produce Too Many Fines?
• Compression Crushing Means Naturally Low Fines
Double roll crushers rely on high-pressure squeeze and shear forces between two counter-rotating rollers. Material is pressed and split at its natural internal stress lines rather than struck at high speeds, resulting in targeted particle fracture with minimal over-crushing or dust creation.
• Moderate and Controllable Fines Content
The discharge gap between the two rollers strictly limits maximum output size. When configured correctly, the fines content stays within an ideal range that supports concrete workability without overloading the downstream washing circuit.
• Comparison with Impact Sand Makers (VSI)
Impact sand makers generate high particle velocity, causing intense attrition and a high percentage of micro-powders. In contrast, the double roll compression mechanism keeps fines production far lower and more stable across continuous operations.
3. Double Roll Crusher vs. Impact Sand Maker (Fines Control)
| Comparison Point | Double Roll Crusher (Compression) | Impact Sand Maker (VSI / Impact) |
|---|---|---|
| Primary Force | Dual-roller squeeze & shear. | High-speed kinetic impact & collisions. |
| Fines Generation | Low to moderate; highly controlled. | High over-crushing rate; significant dust. |
| Washing Load | Low water & power usage in washing. | High burden on washing and desilting units. |
| Gradation Stability | Stable particle size distribution via fixed roll gap. | Fluctuates with rotor speed and liner wear. |

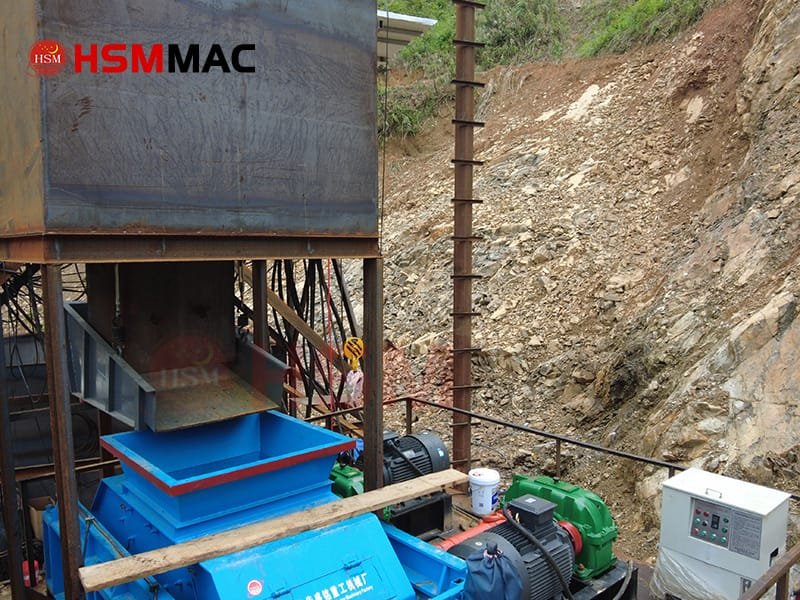

HSM Double Roll Crusher Working Cavity & Roller Shells
4. Key Factors Influencing Fines Production in Roll Crushers
- Material Brittleness & Hardness: Highly brittle or hard materials yield slightly higher dust ratios when crushed. Testing sample material helps determine optimal roller configurations.
- Feed Size & Uniformity: Consistent, choke-fed feeding ensures steady pressure across the entire roller length, maintaining uniform particle distribution.
- Roll Gap Setting: Over-tightening the discharge gap increases compression pressure beyond necessary limits, which can elevate fines production.
- Moisture Content: Higher moisture can cause fine particles to clump together or adhere to roller surfaces, requiring timely gap adjustments.
Summary & HSM Testing Services: Double roll crushers deliver low over-crushing rates, controllable fines content, and lower operating costs, making them ideal for aggregate lines requiring reliable aggregate grading. Huashengming (HSM) provides free material sample testing and trial runs to analyze sieve performance and customize optimal double roll sand production setups.
