Core Diagnosis: Asymmetric discharge in double roller crushers (coarse on one side, fine on the other) leads to inconsistent particle grading and unstable fines output, directly hurting aggregate market value. Most discharge issues are caused by uneven feeding, uncalibrated roller gap ends, or single-sided roller shell wear rather than machine quality flaws. Follow the three-step approach—Adjust Feeding, Measure Gap, Resurface/Replace Shells—for a fast resolution.

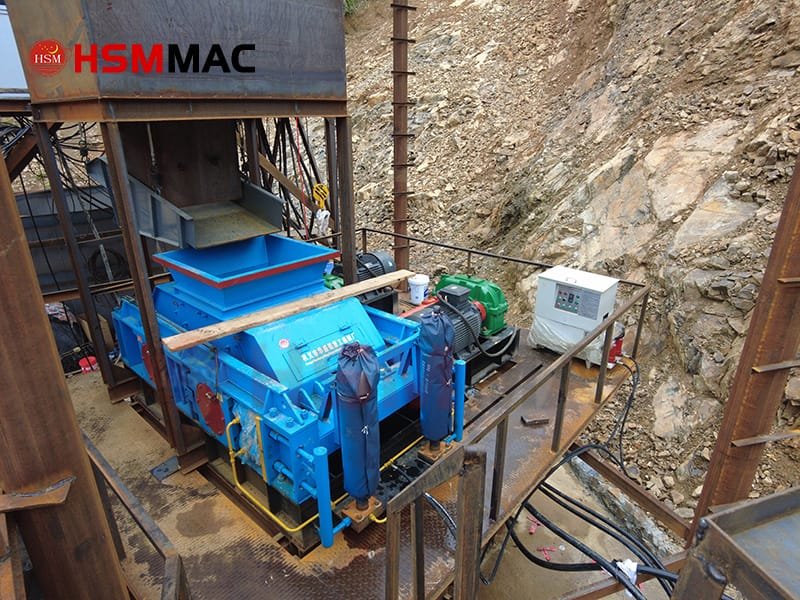

Double-Roll Crusher
3 Core Causes & Standard Solutions
| Fault Cause | Mechanism & Impact | Standard Resolution Procedure |
|---|---|---|
| 1. Off-Center Feeding | Feed chute or conveyor deposits material on a single point, causing unilateral roller strain and localized wear that results in coarse output on one side. | Adjust the feed chute and install distribution baffles so material falls uniformly in a “waterfall” stream along the entire roller length. Prevent single-point feeding. |
| 2. Non-Parallel Roller Gap Ends | Unsynchronized adjustment mechanisms cause twin rollers to lose parallelism, creating a wider gap on one end and a tighter gap on the other. | Lock out and power down: Use a feeler gauge to measure gap dimensions at both ends. Synchronize side adjustments to keep the end-to-end variance within 0.5 mm. |
| 3. Uneven Wear & Grooving | Prolonged off-center feeding wears grooves into the roller shell surface, causing the discharge gap at the grooved position to widen continuously. | For minor uneven wear, resurface the roller face using an on-site lathe attachment. For deep grooving or severe abrasion, replace the roller shell completely. |
HSM Double Roller Crushers: Eliminating Asymmetric Discharge at the Source
To assist sand and gravel processing plants in preventing asymmetric discharge, HSM Heavy Industry incorporates precise engineering and structural enhancements into every double roller crusher:
- High-Precision Twin Roller Parallelism: Strict factory assembly standards guarantee parallel alignment between twin rollers with a rigid frame to prevent operational shifting.
- Precision Gap Adjustment Mechanism: Easy-to-use gap tuning systems (shim or hydraulic models) allow synchronized micro-adjustments on both sides to lock in target gap settings quickly.
- Uniform Feed Design Compatibility: Integrated feeding solutions prevent localized wear on the roller shell, maintaining consistent particle sizes and fully compliant aggregate grading.
Working Principle of a Hydraulic Double-Roll Crusher
Summary: Resolving asymmetric double roller crusher discharge requires full-width uniform feeding and routine gap calibration (variance ≤ 0.5 mm). Choosing a high-precision double roller crusher with stable parallelism protects aggregate quality and maximizes production line profitability!
