Copper ore processing divides into two primary routes—flotation concentrators and heap leaching. Both routes rely heavily on robust crushing circuits, and in both, the double roll crusher earns its place at the tertiary (fine) crushing stage ahead of grinding mills or leach agglomeration. This article examines how roll crushers drive energy efficiency in high-tonnage concentrators (“more crushing, less grinding”) while protecting heap permeability by minimizing fines in leach operations, alongside process flowsheets, high-chrome roll metallurgy, and expert sizing guidance from Huashengming (HSM) Heavy Machinery.
Copper ore processing divides into two distinct routes—flotation concentrators (treating sulfide ores) and heap leaching (treating oxide and secondary sulfide ores). Both routes depend entirely on a reliable crushing circuit, and in both applications, the double roll crusher earns its place at the tertiary (fine) crushing stage, positioned directly ahead of the grinding mill or prior to heap leach agglomeration.
The underlying engineering reasoning differs by route but lands on the exact same high-efficiency machine:
- Concentrator Plants: Enormous tonnages are processed through SAG and ball mills. The “crush more, grind less” principle applies more strongly in copper than almost any other metal—grinding energy dominates plant power draw, and every millimeter of mill feed top size removed upstream is direct energy saved.
- Heap Leach Operations: Crushed ore must adhere to a target top size (commonly around 8–12mm) to ensure optimal leach kinetics and percolation. Excess fines reduce heap permeability and choke leach performance. The roll crusher’s low-fines product profile is precisely what heap leach design demands.
Note: Capacities and size ranges are nominal reference values; final equipment selection is confirmed against your specific ore work index and leach/mill specifications 【Custom Parameters Available】.
HSM Hydraulic Double Roll Crusher Operating in a Copper Concentrator
1. Five Reasons the Roll Crusher Suits Copper Ore Duty
- Crush More, Grind Less (The Concentrator’s Biggest Cost Lever): Copper concentrators process some of the highest tonnages in the mining industry, and grinding is typically the largest single energy consumer on site. Compression comminution is significantly more energy-efficient per ton than tumbling mills. Installing a roll crusher at the tertiary stage lowers SAG and ball mill feed top sizes efficiently, with financial savings scaling directly alongside plant throughput 【Custom Parameters Available】.
- Low Fines (A Direct Heap Leach Benefit): Heap leach percolation relies entirely on heap permeability; excess fines reduce permeability, cause solution channelling, and degrade metal recovery. The roll crusher’s “crush-to-size-and-exit” action produces minimal fines—yielding the exact product heap leach design specifies, rather than the fines-rich material generated by impact crushing.
- Built for Abrasive Ores: Porphyry copper ores containing high silica content are highly abrasive. Free from hammers and blow bars, the primary wear components are roller shells specified in heavy-duty high-chromium alloys for copper service, wearing evenly across the active face and replaceable individually without machine overhauls.
- Tramp Metal Protection: Shovel teeth, drill steel fragments, and crusher liner pieces enter copper plant feeds routinely. High-response hydraulic relief systems retract the movable roll instantly to pass foreign metal objects and reset automatically, protecting roll shells and main shafts while preventing unplanned downtime.
- Adjustable Product & Stable Feed: Inter-roll gap clearance governs product top sizes. Heap leach operations can target leach-optimal sizing and hold it steady, while concentrators can match exact SAG feed specifications. When ore hardness shifts, operators adjust settings instantly.
2. Typical Copper Plant Flowsheets
Concentrator Route (Sulfide Ore):
Vibrating Feeder rightarrow Jaw Crusher (Primary) rightarrow Cone Crusher (Secondary) rightarrow Double Roll Crusher (Tertiary Fine Crushing) rightarrow Circular Vibrating Screen (Closed Circuit) rightarrow SAG / Ball Mill rightarrow Flotation Circuit.
Heap Leach Route (Oxide / Secondary Sulfide Ore):
Vibrating Feeder \rightarrow Jaw Crusher (Primary) \rightarrow Cone Crusher (Secondary) \rightarrow Double Roll Crusher (Tertiary Fine Crushing) \rightarrow Circular Vibrating Screen (Closed Circuit) \rightarrow Agglomeration (with Sulfuric Acid) \rightarrow Heap Stacking \rightarrow Leaching.
In both routes, two rules apply: prepare feed upstream (jaw and cone crushers bring feed within the roll crusher’s 25–120mm top size limit), and close the circuit on a vibrating screen so product top size holds steady without forcing roll gaps to extremes 【Custom Parameters Available】.

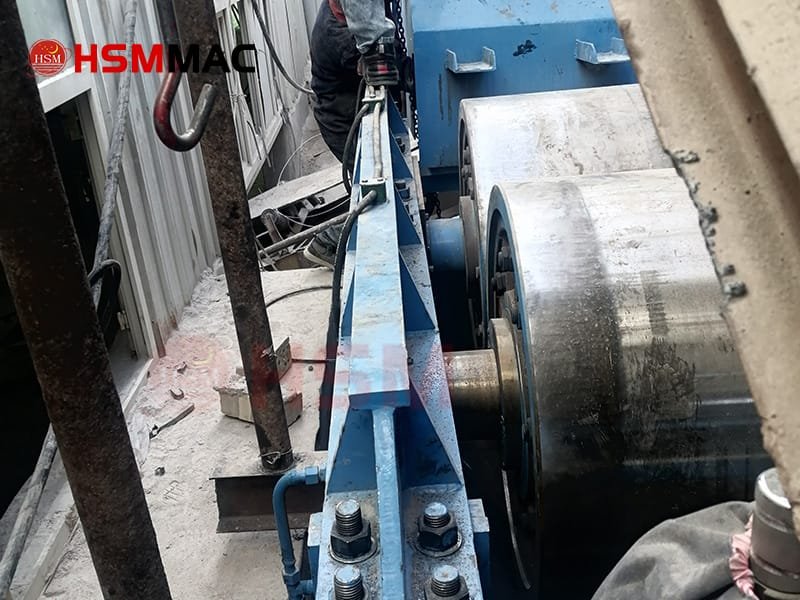

High-Chrome Roller Shells
3. Model Range for Copper Ore (Reference)
| Model Designation | Roll Diameter (mm) | Max Feed Size (mm) | Capacity (T/H) |
|---|---|---|---|
| 2PGY800×1000 | 800 | 40 | 50–80 |
| 2PGY1200×1200 | 1200 | 60 | 120–150 |
| 2PGY1500×1200 | 1500 | 80 | 200–250 |
| 2PGY1800×1000 | 1800 | 100 | 250–300 |
| 2PGY2000×1200 (Flagship) | 2000 | 120 | 300–400 |
Selection Rule: Choose a model whose mid-range capacity covers your operational duty, rather than one whose absolute ceiling equals it. High-chrome roller shells are supplied as standard for copper ore duty, and multi-unit parallel layouts readily extend plant capacity beyond 400 T/H 【Custom Parameters Available】.
4. Frequently Asked Questions
Q: Roll crusher or cone crusher for copper tertiary crushing?
A: They are complementary rather than competing. Cone crushers carry the bulk size reduction across secondary and tertiary stages, while roll crushers take over where precise top-size control and low fines generation pay off—directly ahead of SAG mills in concentrators or prior to agglomeration in heap leach circuits. Many plants operate a cone-to-roll crusher arrangement as an optimized two-stage tertiary setup.
Q: Can it handle hard chalcopyrite ore?
A: Yes—high-chrome shells on a low-speed compression machine handle hard, abrasive copper ore reliably. While shell wear rates on porphyry ore naturally exceed those on softer materials, lifetime wear and downtime economics continue to favor roll shells over impact wear parts in this duty. Send your ore work index data for precise machine sizing 【Custom Parameters Available】.
Q: What product size is required for heap leach?
A: Heap leach top size is a project-specific design decision based on mineralogy, leach kinetics, heap height, and percolation requirements. The roll crusher delivers whatever top size the roll gap sets, with minimal fines. Send your leach specification and we confirm the achievable window by engineering calculation 【Custom Parameters Available】.
Q: How does the machine handle moisture after washing?
A: Roll crushers tolerate moist, slightly sticky feeds much better than impact machines. For ores featuring significant clay content (such as supergene enriched zones), specialized toothed roll surfaces are readily available.
5. Size Your Crusher With Four Data Points
To receive a precise engineering proposal and quotation for copper ore processing, please provide:
- Ore Type & Hardness: (e.g., chalcopyrite, bornite, oxide ore; Bond work index if available)
- Feed Top Size to Crusher: (Pre-crushed dimensions entering the double roll stage)
- Required Product Specification: (SAG mill feed top size or heap leach target top size)
- Design Capacity: (Tons per hour target)
Providing these four metrics allows Huashengming to specify exact equipment models, motor ratings, and high-chrome roller shell configurations 【Custom Parameters Available】.
Referenced process descriptions serve as engineering guidelines; specific performance parameters are governed by official project customization agreements.
