In the heap leaching process for low-grade gold ores, the particle size uniformity of the feed material is a critical factor determining gold recovery. In traditional processing, material coming out of the jaw crusher often has inconsistent particle sizes, which negatively affects subsequent percolation and spray penetration. Introducing efficient medium and fine crushing equipment to consistently control ore within the optimal size range is an essential step for reducing costs and improving efficiency in heap leaching operations.
Huashengming hydraulic roll crusher, with its high reduction ratio and stable discharge control capability, has become a key piece of equipment in gold ore crushing circuits.
gold ore
Core Advantages and Technical Features
Large Feed Opening, High Reduction Ratio
Unlike conventional fine crushers, Huashengming hydraulic roll crushers feature strong feed acceptance, accommodating feed sizes up to 40-120mm (depending on the specific model). This allows the equipment to accept relatively coarse material directly after primary crushing. Through a single-stage fine crushing process, it consistently reduces jaw-crushed ore to the target particle size, effectively simplifying the traditional multi-stage crushing flowsheet.
Specialised Roll Shells – Wear-Resistant and Impact-Resistant
To address the high hardness of gold ores, the core component – the roll shells – is manufactured using a high‑manganese steel matrix (e.g., Mn18Cr2) , alloyed with various rare metals. Through a specific heat treatment process, the roll surface achieves both high hardness and good toughness, enabling it to withstand the impact and abrasion of hard rock, thus extending service life and reducing downtime.
Compression + Shearing, Well-Shaped Particle Size
The equipment operates on the principle of dual‑roll compression combined with shearing. Once material enters the crushing chamber, it is pulled between the two counter‑rotating rolls and subjected to both high compressive forces and significant shearing action. This combined comminution method breaks material along its cleavage planes efficiently, with lower energy consumption. The output consists largely of regular cubic particles with abundant internal microfractures, while the over‑crushing rate remains extremely low. For heap leaching operations, this means improved heap porosity and more uniform permeation of the leach solution, ultimately enhancing gold dissolution and recovery.
Hydraulic Protection for Reliable Operation
The crusher is equipped with a full hydraulic adjustment and overload protection system. Operators can easily adjust the discharge setting according to process requirements. When tramp material (such as drill bits or iron pieces) enters the crushing chamber, the hydraulic system automatically retracts and then resets, effectively protecting the roll bodies and bearings from damage and ensuring continuous operation under demanding conditions.

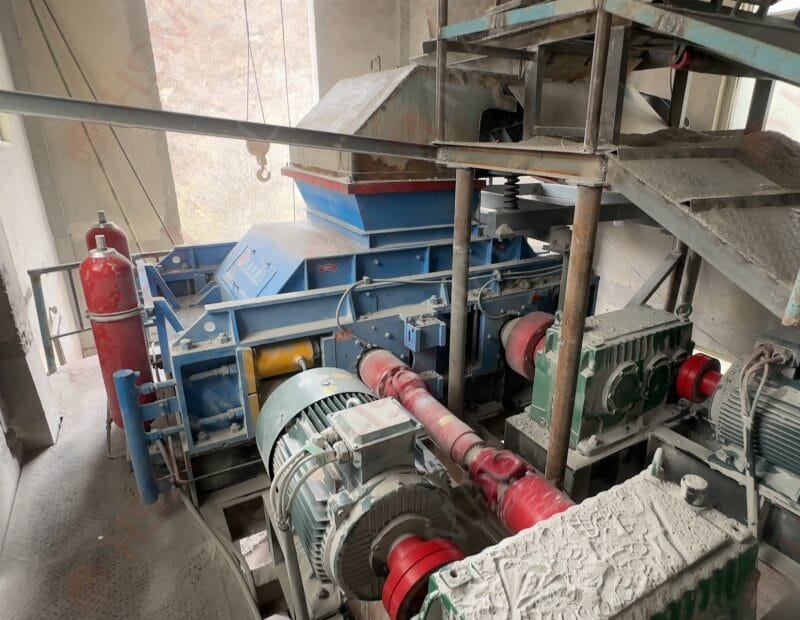

Hydraulic Roll Crusher at a Gold Mine Production SiteHydraulic Roll Crusher at a Gold Mine Production Site
Typical Application Scenarios
In a gold heap leaching processing line, Huashengming hydraulic roll crusher is typically installed after the primary crusher, with the main task of reducing coarse ore to -10mm (or as required by the specific process). The consistently sized product creates ideal conditions for subsequent heap construction, spray irrigation, and adsorption processes. Whether for low-grade oxide gold ore heap leaching or the secondary recovery of gold from tailings, Huashengming hydraulic roll crusher demonstrates strong material adaptability and operational stability.
Selection Recommendations
The capacity parameters, feed size range, and roll shell configuration details vary depending on ore characteristics and should be selected according to actual conditions. Huashengming’s technical team can provide customised, one‑on‑one selection solutions based on ore samples provided by the customer, ensuring perfect alignment between equipment and process requirements.
Conclusion
In heap leaching, feed particle size is one of the core indicators that determines gold recovery. Huashengming hydraulic roll crusher – with its large feed opening, specialised wear‑resistant roll shells, combined compression‑shearing action, and full hydraulic protection system – offers an efficient and stable fine crushing solution for gold heap leaching projects. From coarse ore to uniformly sized fines, one machine completes the task precisely, helping concentrators reduce costs and boost recovery. Welcome to contact us or visit our factory for a demonstration!
