Case Study: Strategic 120TPH River Pebble Sand Making Plant Layout for High-Grade Concrete
When a large-scale construction contractor needed a stable supply of high-standard manufactured sand, they didn’t just need a crusher—they needed a highly efficient river pebble sand making plant layout that could fit into a compact site while maintaining a 120TPH output.
HSM Machinery delivered a full-process solution, from raw material feeding to the final dust collection system.

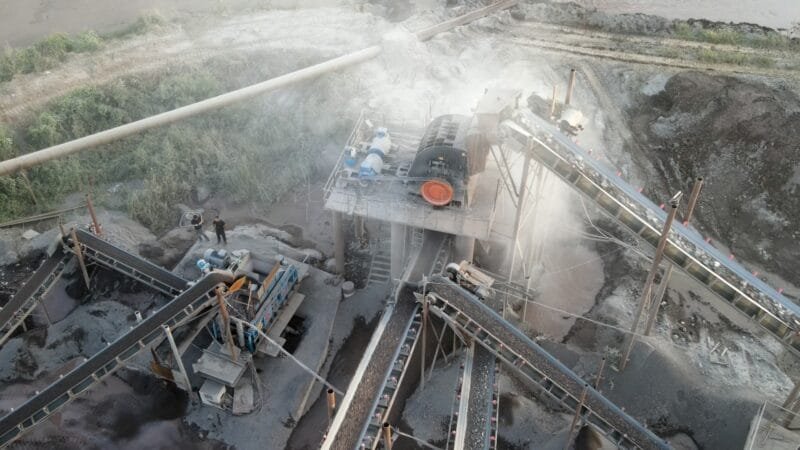

Comprehensive Engineering: The 120TPH site layout designed by HSM to minimize conveyor length and maximize gravity flow.
1. The Design Philosophy: Efficiency First
Our engineering team focused on three core objectives for this river pebble sand making plant layout:
-
Footprint Optimization: Reducing the land required for the production line.
-
Energy Flow: Utilizing the natural slope of the site to reduce the motor power needed for conveyors.
-
Modular Setup: Allowing for easy future expansion or relocation.
2. Technical Flow Breakdown
The plant follows a strictly optimized path to ensure a 0-5mm sand yield of over 90%:
-
Feeding: Heavy-duty vibrating feeder with pre-screening to remove soil.
-
Primary Crushing: Jaw crusher for large boulders (if >200mm).
-
Sand Making: The HSM PGY1500×1000 Hydraulic Roller Crusher handles the final shaping and crushing.
-
Cleaning: High-efficiency sand washer to ensure the final product is silt-free.

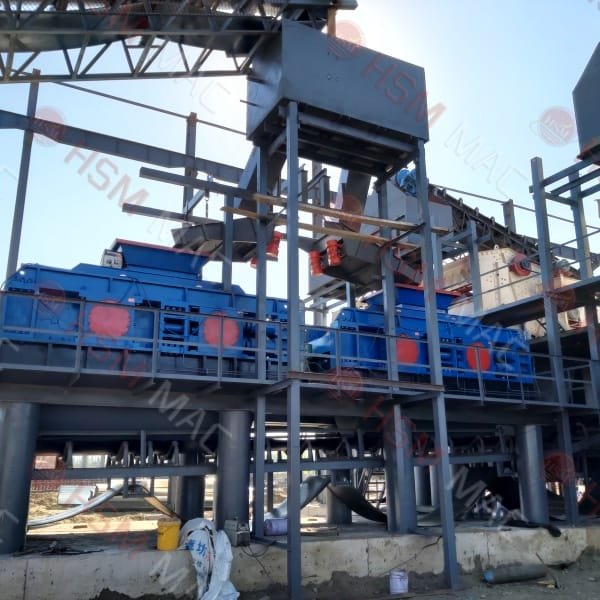

The Heart of the Plant: Our PGY series roller crusher operating at 120 tons per hour with minimal vibration.
3. Client Testimonial
“The river pebble sand making plant layout provided by HSM saved us significant time during the installation phase. The hydraulic control system makes the operation extremely simple, and the wear part costs are the lowest we’ve seen in the industry.” — Plant Manager, Philippine Infrastructure Project.
Conclusion
A successful sand production line starts with a professional layout. At HSM, we combine high-performance machinery with expert engineering to ensure your project is profitable from day one.
From Design to Delivery: HSM provides full lifecycle support for your mining and aggregate projects.
